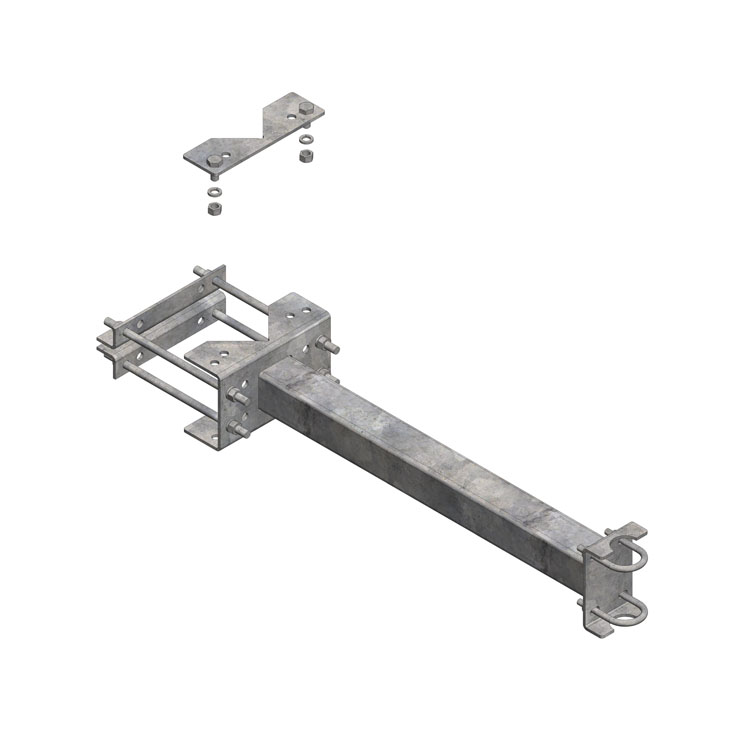

Universal Side Arm Mount

Product Classification

Part Number 1012-0000-0100

Product Type Universal Side Arm Mount

General Specifications

Application Mount provides a versatile solution for attaching equipment to the side of structures, accommodating various configurations and ensuring secure and stable installation.

Dimensions

Length 52.125 in [1,323.98 mm]

Width 11.75 in [298.45 mm]

Height 7 in [212.73 mm]

Weight 53.46 lb [24.25 kg]

Max Pipe Dia. 8.625 in Dia [219.08 mm]

Min Pipe Dia. 1.9 in Dia [48.26 mm]

Material Specifications

Material Type Hot dip galvanized steel
