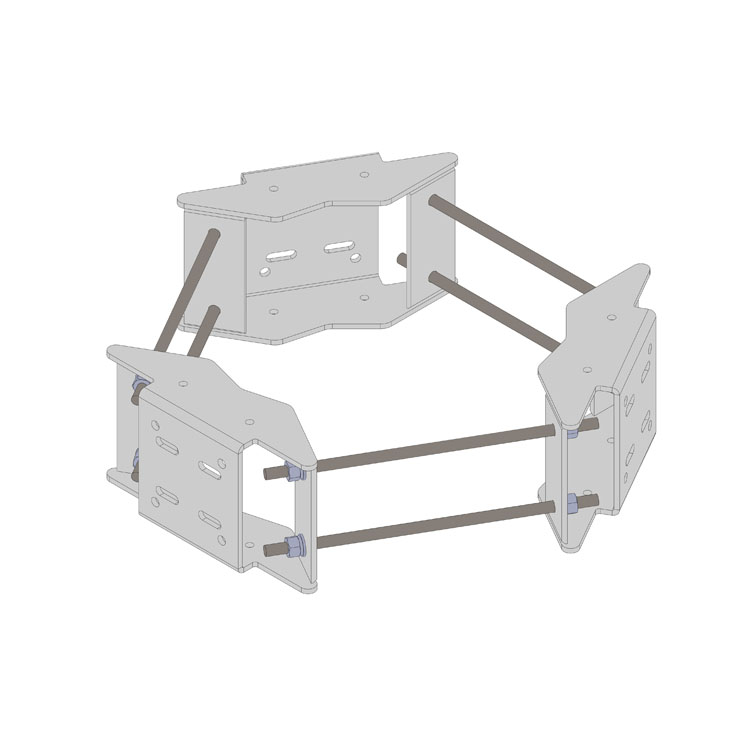

Universal Ring Mount, 6” – 24” Dia. Pole

Product Classification

Part Number 1012-0000-0133

Product Type Universal Ring Mount

General Specifications

Application Antenna/Radio mount

Tower Taper Non-tapered

Dimensions

Height 10 in [254 mm]

Face Width 9 in [229 mm]

Mounting Dia., max. 24 in [609 mm]

Mounting Dia., min. 6 in [152 mm]

Stand-off Distance 4.75 in [121 mm]

Weight, Total 110 lb [50 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222
