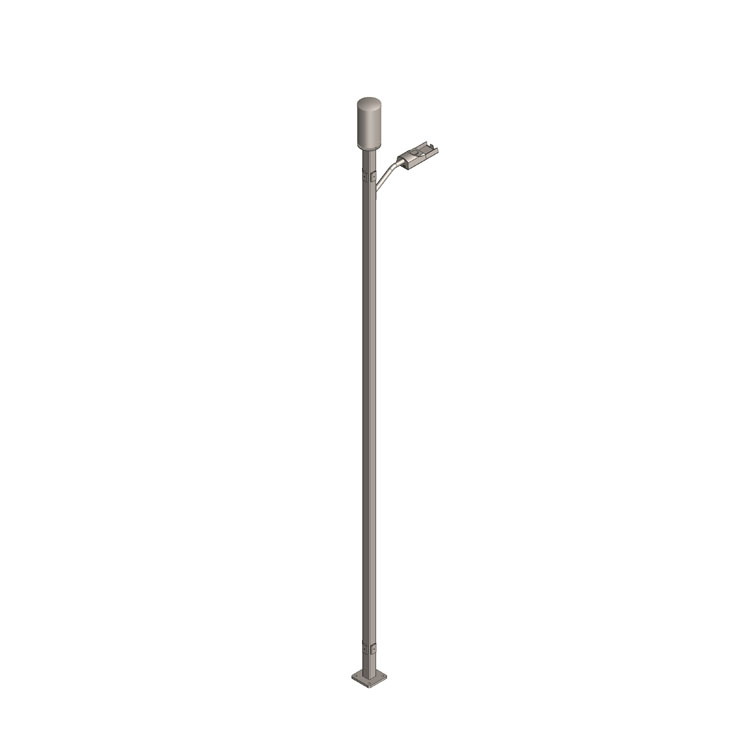

Tri-Chambered Pole, Pad Mount

Product Classification

Part Number 1002-0020-0097

Product Type 27’ Tri-chambered Pole– Pad Mounted

General Specifications

Application 5G/Small Cell Single Carrier External Mount Pad Mounted

Dimensions

Height Overall 326 in [8,280 mm]

Pole width 5 in [127   mm]

Pole Depth 5 in [127 mm]

Weight, Total 639 lb [290 kg]

Material Specifications

Material Type Hot dip galvanized or painted steel

Mechanical Specifications

Additional sizes available

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Download Drawing
