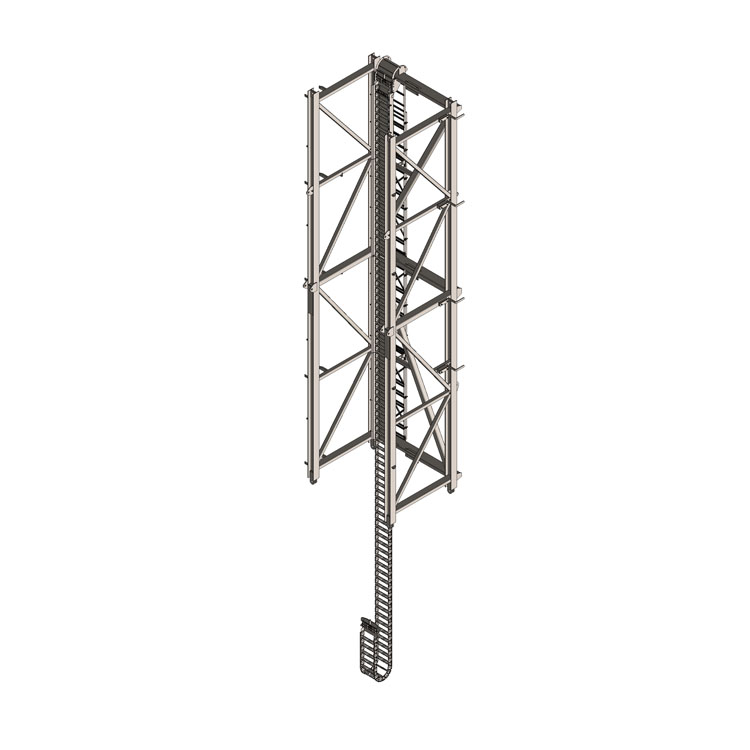

Top Drive Vertical Drag Chain And Trough Set

Product Classification

Part Number 1013-0000-0020

Product Type DRAG CHAIN KIT

General Specifications

Application This set includes a vertical drag chain and trough designed for top drive systems, ensuring efficient and protected cable management during drilling operations.

Dimensions

Width 118.75 in [3,016.25 mm]

Length 122.2 in [3,103.9 mm]

Height 480 in [12,192 mm]

Weight 3,483.75 lb w/o Electrical Cable

Material Specifications

Material Type / Grade Stainless Steel, AISI 304

Mechanical Specifications

Optional accessories Electrical Cable and Connectors

Download Drawing
