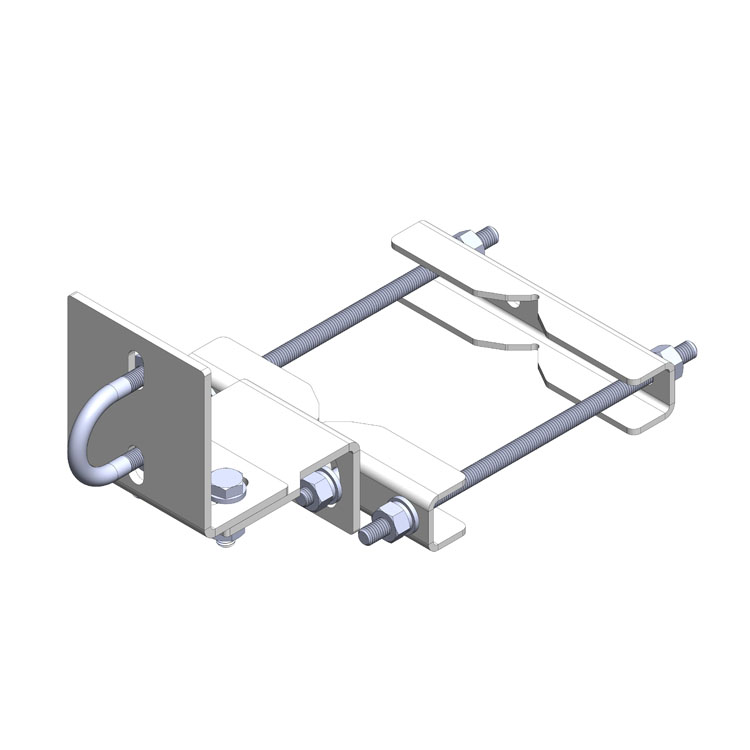

Stiff Arm Mounting Kit

Product Classification

Part Number 1012-0000-0047

Product Type Stiff Arm Mounting Kit

General Specifications

Application Kit provides a robust solution for mounting equipment using stiff arms, ensuring secure attachment and stability in various installations.

Dimensions

Length 16.5 in [419.1 mm]

Width 9 in [228.6 mm]

Height 8.375 in [212.73 mm]

Weight 12.38 lb [5.62 kg]

Max Pipe Dia. 6.625 in Dia [168.28 mm]

Material Specifications

Material Type Hot dip galvanized steel

Compatibility compatible with 1.9” stiff arm
