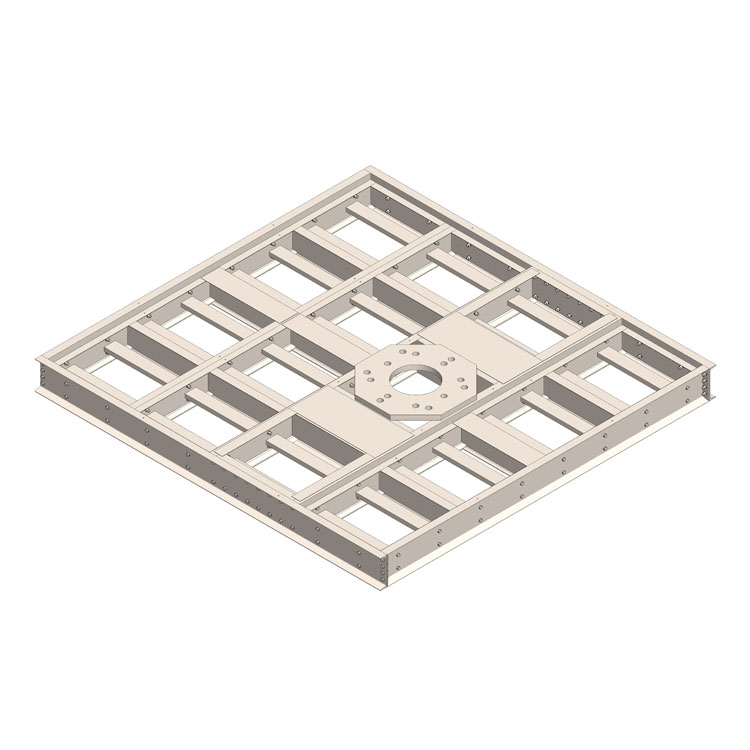

SQ-15 Ballast Frame

Product Classification

Part Number 1010-0010-0194

Product Type SQ-15 Ballast Frame

General Specifications

Application Provides a stable and secure base to ensure reliable support for various equipment installations.

Dimensions

Height 17.5 in [444.5 mm]

Width 179 in [4,546.6 mm]

Length 184 in [4,673.6 mm]

Weight, Total 9,827.5 lb [4,457.7 kg]

Material Specifications

Material Type / Grade Hot dipped galvanized steel / A36

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050.

Download Drawing
