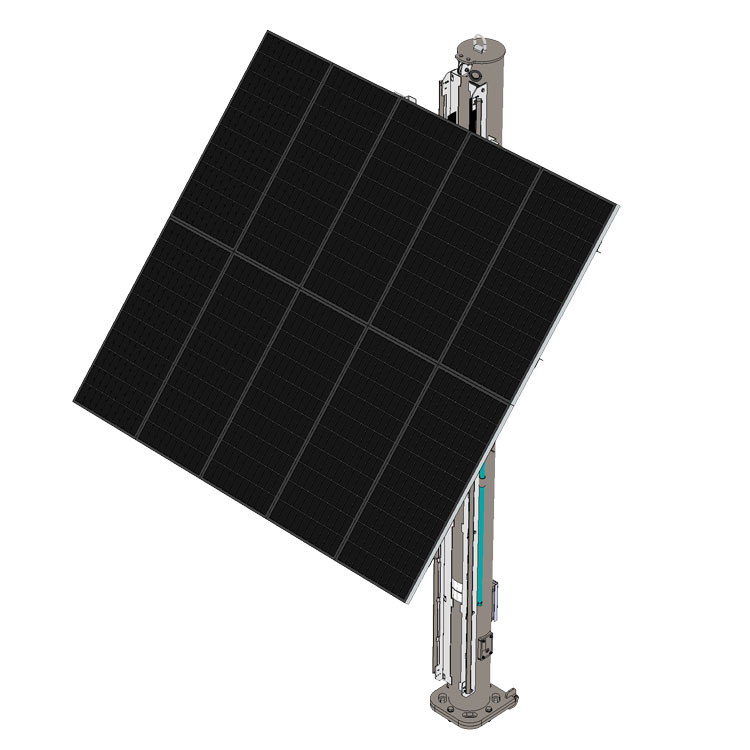

Solar Monopole, 20’ – 10 Module

Product Classification

Part Number 400-005-1100

Product Type Solar Monopole, 20’ – 10 Module

General Specifications

Application Remote location solar power. Base configured for helical pier, direct burial, or pre-cast foundations. Solar frame track allows for raising and lowering for servicing from ground level.

Dimensions

Width 132.75 in [3,371.85 mm]

Pole Diameter 12.75 in [323.9 mm]

Height 240 in [6,096 mm]

Weight 2,281 lb [1034.6 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Additional sizes available 20’ – 30’

Solar Modules provided separately 6 – 10 module configurations available

J-Box provided separately

Wind Generator provided separately

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222
