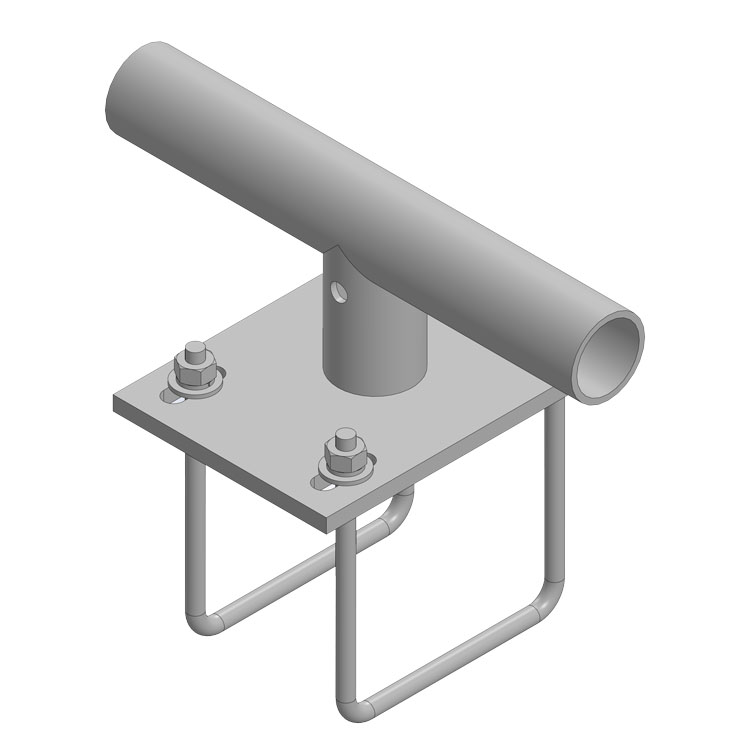

Single Square Mast Antenna Mount Kit

Product Classification

Part Number 1015-0000-0034

Product Type Single Square Mast Antenna Mount Kit

General Specifications

Application Antenna/Radio mount

Mounting 5 in [127 mm]

Pipe, Quantity 1

Tower Taper Non-tapered | Tapered

Dimensions

Height 12 in [304.8 mm]

Vertical Pipe Diameter 1.5 in [38.1 mm]

Pipe Length 12 in [304.8 mm]

Face Width 8 in [203.2 mm]

Stand-off Distance 2.25 in [57.15 mm]

Weight, Total 8.8 lb [3.99 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Download Drawing
