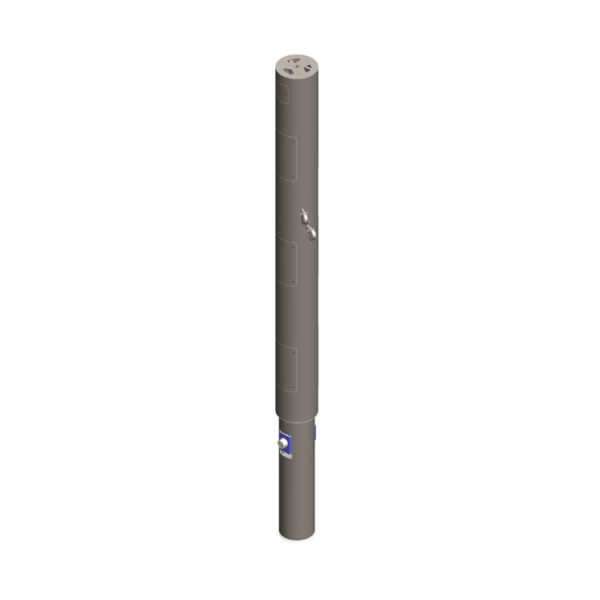

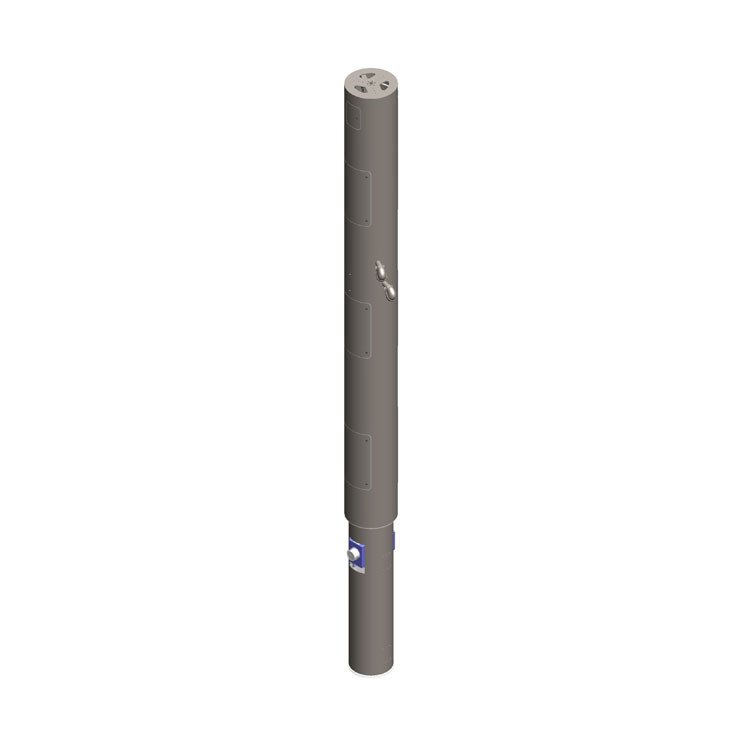

MuniCom™ Pole

Product Classification

Part Number 1002-0040-0058

Product Type 41ft 11in Monopole, Helical Mount

General Specifications

Application 5G/Small Cell Multi-Carrier Internal Mount

Dimensions

Height Overall 534 in [13,564 mm]

Height Above Grade 503.625 in [12,792 mm]

Pole Base Diameter 20 in [508 mm]

Pole Equipment Diameter 24 in [610 mm]

Weight, Total 2,480 lb [1,125 kg]

Material Specifications

Material Type Hot dip galvanized or painted steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Download Drawing
