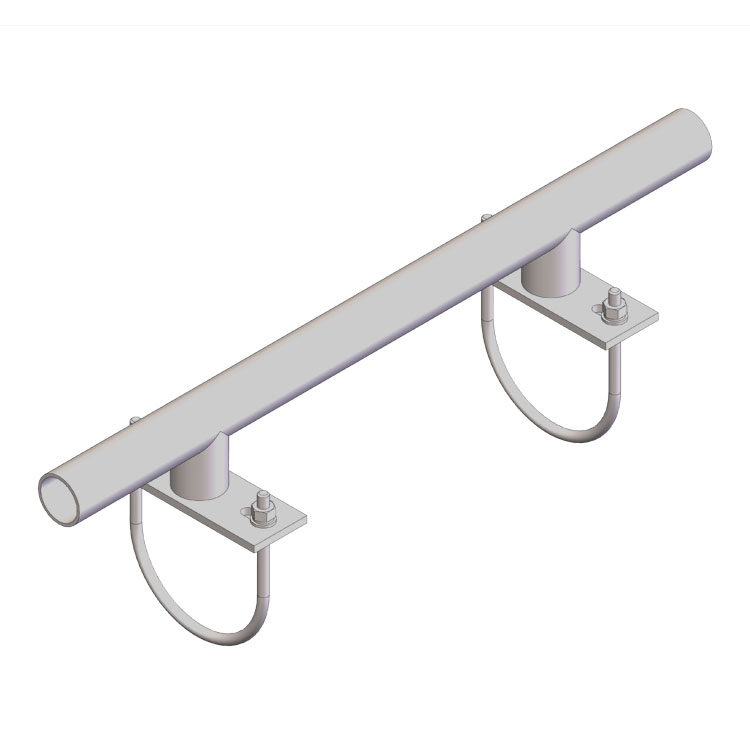

Mid-Mast Antenna Mount, P6”

Product Classification

Part Number 1015-0000-0016

Product Type Mid-Mast Antenna Mount, P6”

General Specifications

Application Antenna mount

Mounting 6.625 in [168.28 mm] OD

Pipe, Quantity 1

Tower Taper Non-tapered | Tapered

Dimensions

Height 36 in [914.4 mm]

Vertical Pipe Diameter 2 in [50.8 mm]

Pipe Length 36 in [914.4 mm]

Face Width 9.25 in [234.95 mm]

Stand-off Distance 3.5 in [88.9 mm]

Weight, Total 116 lb [52.62 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Download Drawing
