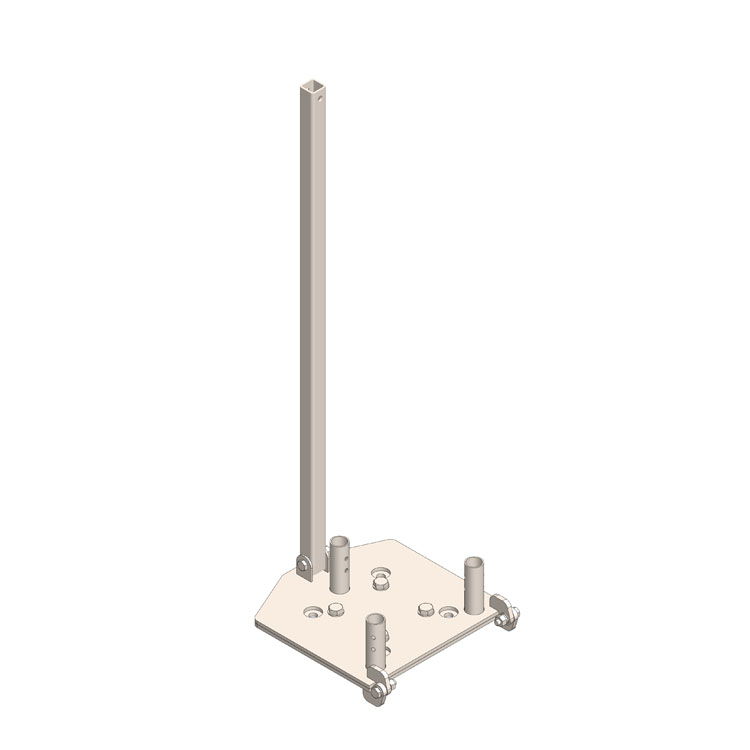

Hinge Plate Assy for Lattice Tower

Product Classification

Part Number 1000-0030-0194

Product Type Hinge Plate Assy for Lattice Tower

General Specifications

Application Assembly provides a hinge mechanism that allows the lattice tower to be tilted up and down for easy installation and maintenance, ensuring secure attachment and adjustment.

Dimensions

Height 8 in [203.2 mm]

Width 24 in [609.6 mm]

Length 26.0625 in [662 mm]

Weight, Total 169.4 lb [76.8 kg]

Material Specifications

Material Type / Grade hot dipped galvanized steel / A36

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050.

Mounting Helical foundation

Download Drawing
