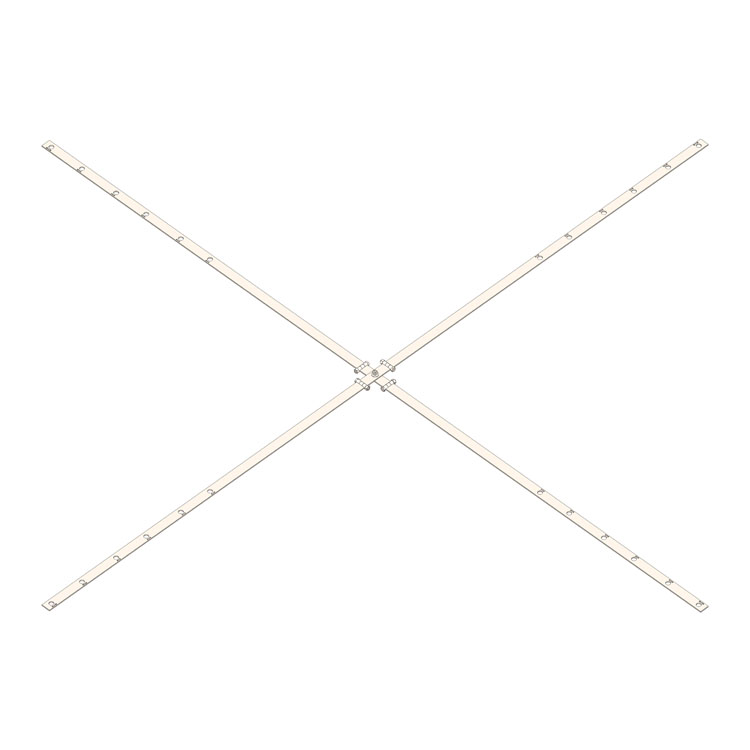

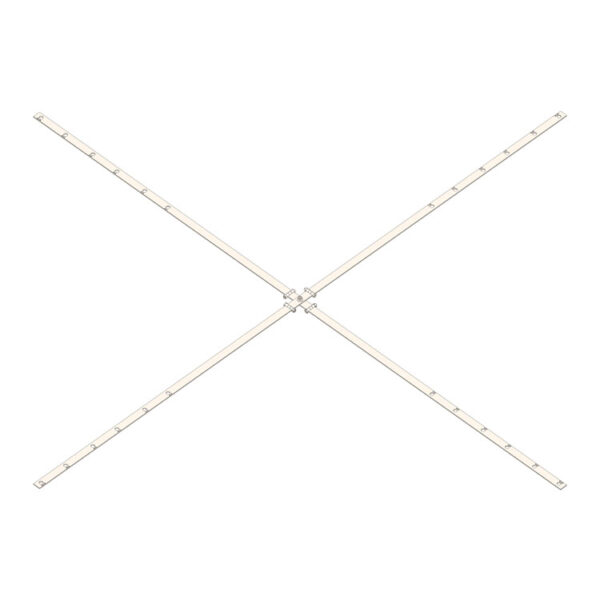

Helical Foundation Layout Tool

Product Classification

Part Number 1010-0000-0203

Product Type Helical Foundation Layout Tool

General Specifications

Application Tool assists in precisely planning and marking the layout for helical foundations, ensuring accurate placement and alignment for secure and effective installations.

Dimensions

Height 1/4 in [6.35 mm]

Width 120 in [3,048 mm]

Length 120 in [3,048 mm]

Weight, Total 18 lb [8.2 kg]

Material Specifications

Material Type / Grade hot dipped galvanized steel / A36

Mechanical Specifications

Can be angled to hit Configurations: 10” X 8”, 8” X 6”, 6” X 4”

Download Drawing
