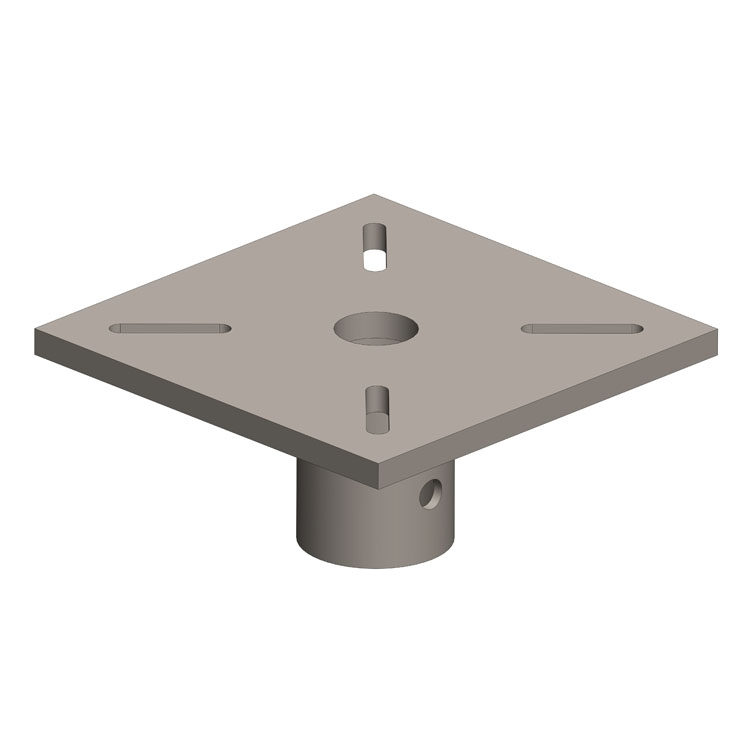

Helical Cap for 4” Helical

Product Classification

Part Number 1000-0010-0535

Product Type Helical Cap Plate 17” X 17”

General Specifications

Application This cap mounts to the top of a 4” helical, serving a dual purpose: it facilitates driving the helical into the ground and provides a secure point for equipment mounting.

Dimensions

Height 8 in [203.2 mm]

Width 17 in [431.8 mm]

Length 17 in [431.8 mm]

Weight, Total 87.9 lb [39.9 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050.

Download Drawing
