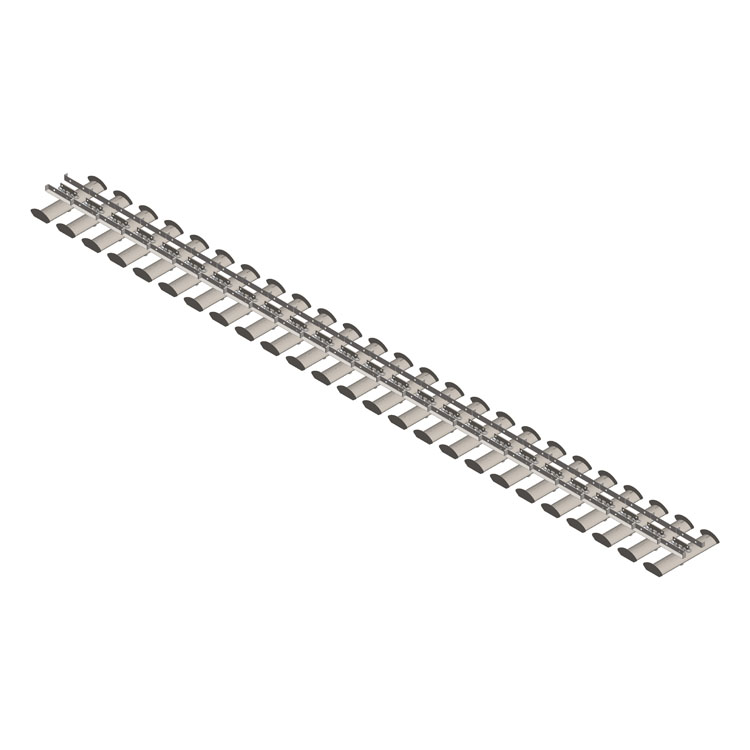

Festoon Saddle Set

Product Classification

Part Number 1011-0010-0006

Product Type Festoon Link Assembly, set 6-inch 36 WD.

General Specifications

Application Festoon Saddles with Trollies with or without Beam and Electrical Cable

Dimensions

Width 36 in (3 ft)

Length 401.5 in (44 ft)

Height 17 in (9.2 ft)

Travel Length 2,880 in (240 ft)

Weight 1,837 lb w/o Beam and Electrical Cable

Material Specifications

Material Type / Grade Stainless Steel, AISI 304, ASTM A992

Mechanical Specifications

Additional sizes available Up to 55’ long, 300’+ of Travel

Optional accessories Electrical Cable and Connectors, Plug Panels

Standards AISC, ASTM, API, AWS D1.1 & D1.3
