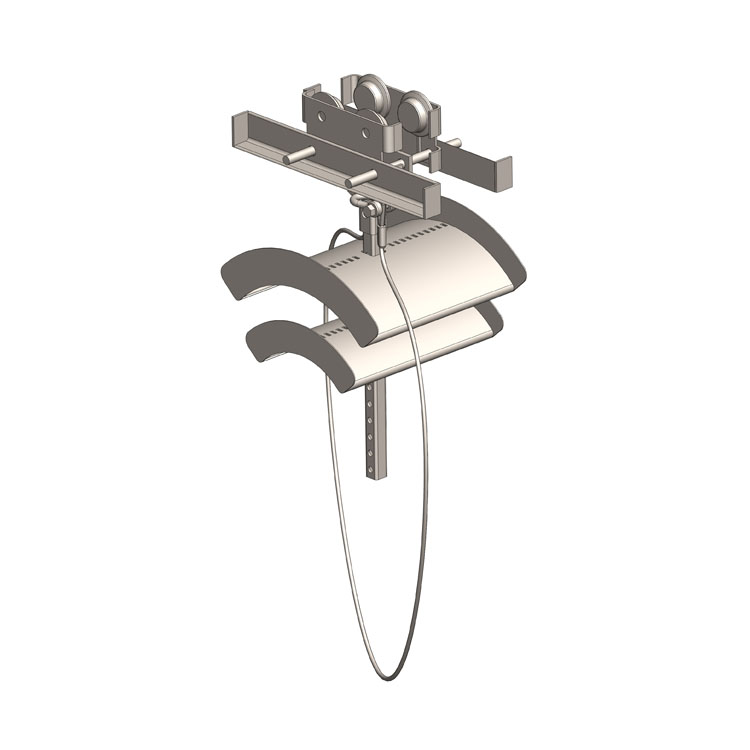

Festoon Assembly

Product Classification

Part Number 1011-0010-0015

Product Type Festoon Assembly

General Specifications

Application Festoon Saddle with Trolly

Dimensions

Width 36 in [914.4 mm]

Length 25.5 in [647.7 mm]

Height 37.2 in [944.9 mm]

Weight 97.6 lb [44.3 kg]

Material Specifications

Material Type / Grade Stainless Steel, AISI 304, ASTM A992

Mechanical Specifications

Standards AISC, ASTM, API, AWS D1.1 & D1.3

Download Drawing
