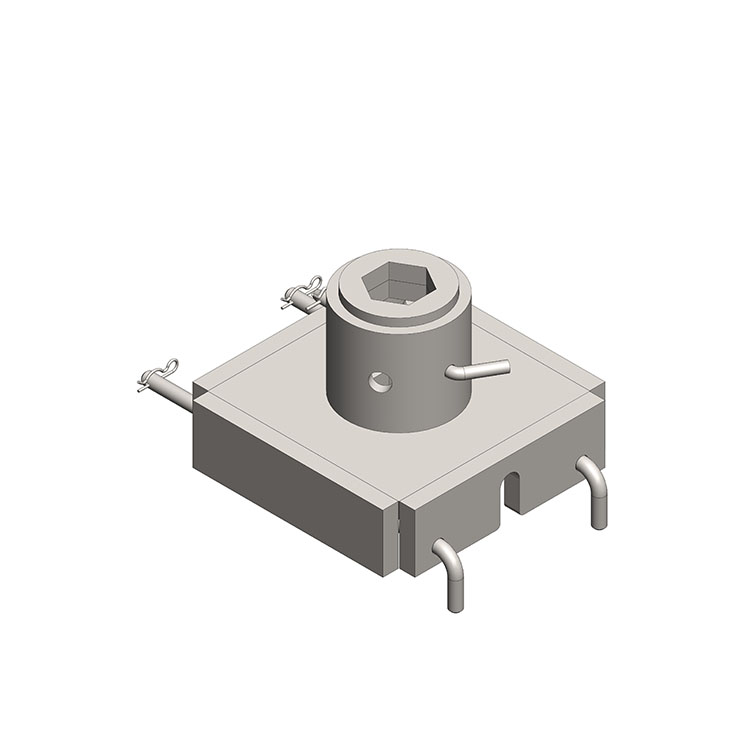

EMI Drive Tool – 3” Hex Drive for 6” Helical

Product Classification

Part Number 1000-0020-0085

Product Type 3” Hex Drive Tool for 6” Helical

General Specifications

Application Provides interface for installation of helicals

Dimensions

Width 14.3725 in [365.06 mm]

Height 9.75 in [247.65 mm]

Depth 14.3725 in [365.06 mm]

Weight 121.1 lb [54.93 kg]

Material Specifications

Material Type Carbon steel

Mechanical Specifications

Hex Size 3 in

Top Plate Length 12.3125 in [312.74 mm]

Top Plate Width 12.3125 in [312.74 mm]

Top Plate Height 1 in [25.4 mm]

Download Drawing
