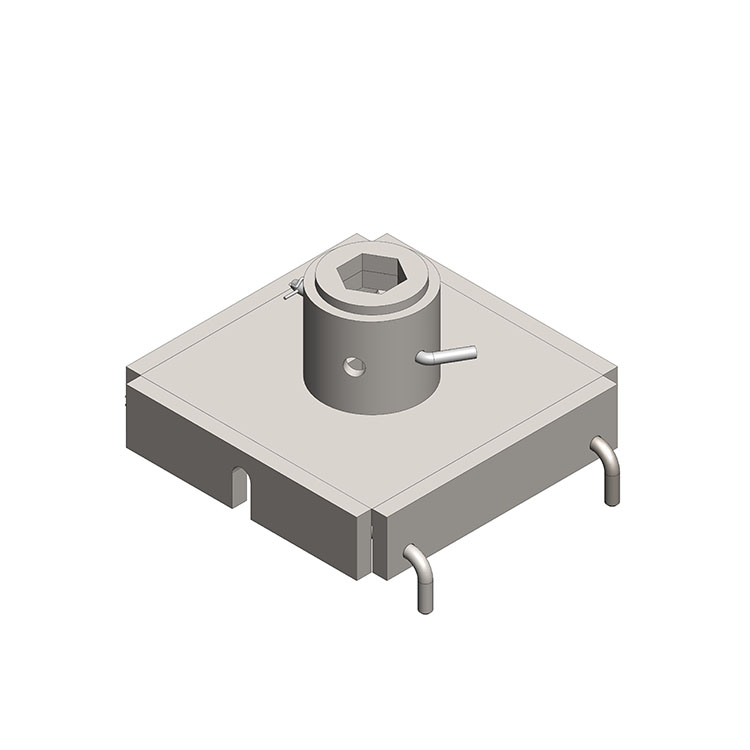

EMI Drive Tool – 3” Hex Drive for 10” Helical

Product Classification

Part Number 1000-0020-0064

Product Type 3” Hex Drive Tool for 10” Helical

General Specifications

Application Provides interface for installation of helicals

Dimensions

Width 17.813 in [452.45 mm]

Height 9.75 in [247.65 mm]

Depth 17.813 in [452.45 mm]

Weight 163.9 lb [74.34 kg]

Material Specifications

Material Type Carbon steel

Mechanical Specifications

Hex Size 3 in

Top Plate Length 15.5 in [393.7 mm]

Top Plate Width 15.5 in [393.7 mm]

Top Plate Height 1 in [25.4 mm]

Download Drawing
