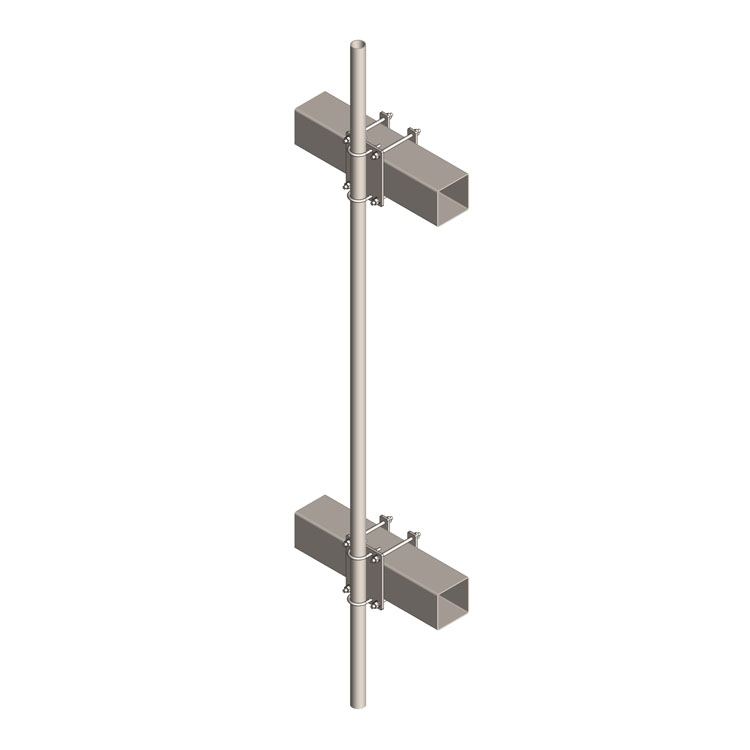

Crossover Plate Kit, 2.5” Pipe to 8” Square Tube

Product Classification

Part Number 1012-0000-0138

Product Type Crossover Plate Kit, 2.5” Pipe to 8” Sq Tube

General Specifications

Application used to mount vertical pipes to horizontal square tubing. It provides a secure and stable connection for various industrial applications.

Dimensions

Length 14.5 in [368.3 mm]

Width 9 in [228.5 mm]

Height 12 in [304.8 mm]

Weight 57.78 lb [26.2 kg]

Material Specifications

Material Type Hot dip galvanized steel
