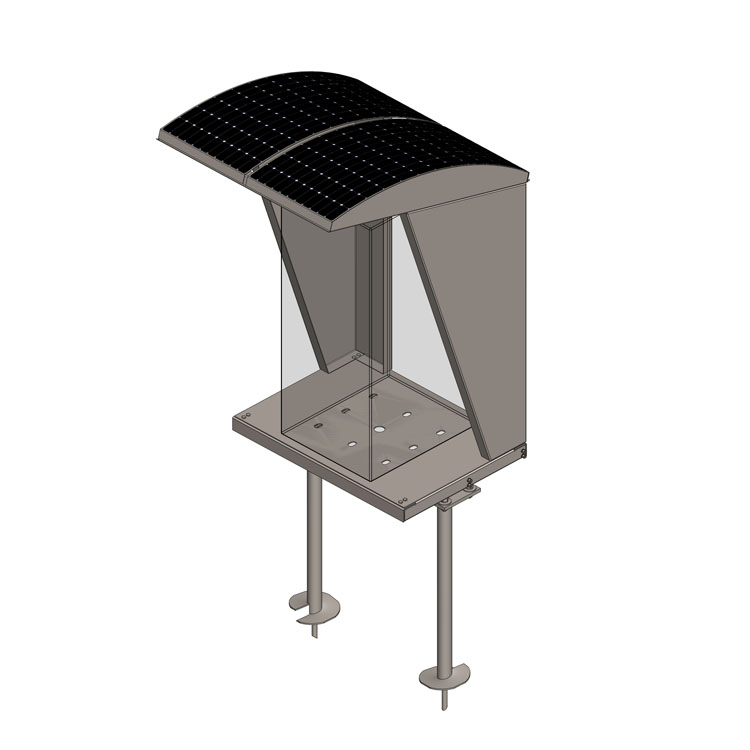

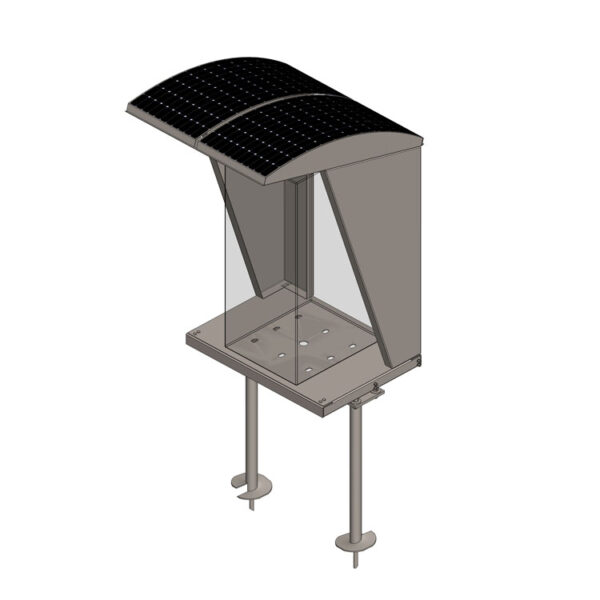

Centaur-E ™ Single EV Charging Plinth

Product Classification

Part Number 1000-0010-0518

Product Type Mounted solar canopy for EV charging station

General Specifications

Application EV charging station with helical mount solar canopy for flexible, sustainable charging.

Dimensions

Width 57.375 [1,457 mm]

Height above grade 106 in [2,692 mm]

Height 175.85 in [4,466 mm]

Weight 1087.68 lb [493.36 kg]

Material Specifications

Material Type Hot dip galvanized steel or painted to customer specifications

Mechanical Specifications

EV Charger Provided by customer.

Base plate Interchangeable base plate to accommodate any charging station.

Solar Pannels 27 square feet of flexible solar modules.

Installation Dual helical mount to facilitate a fast and flexible installation.

Download Drawing
