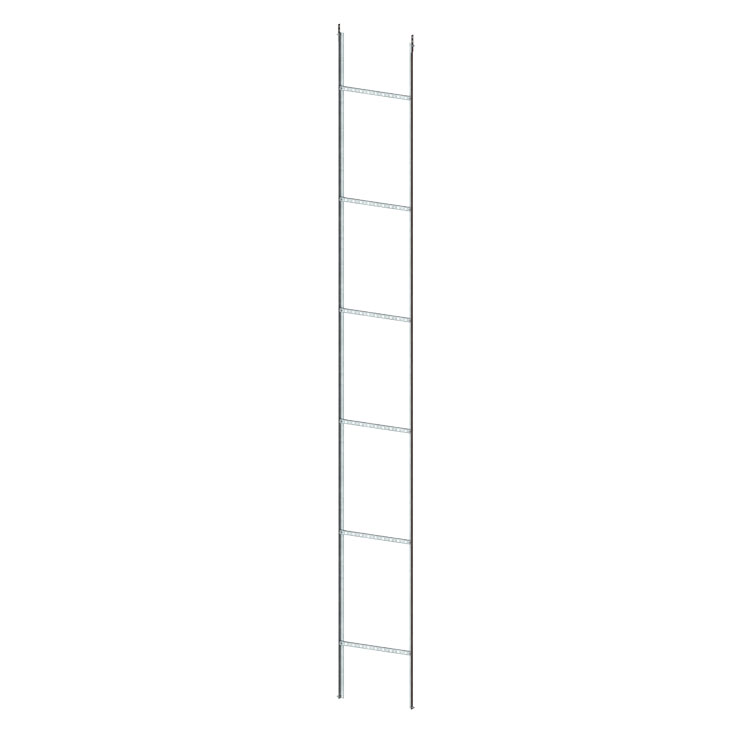

Cable Ladder Kit, 30 in x 20 ft, 9-Hole Rung

Product Classification

Part Number 1000-0010-0303

Product Type Cable Ladder Kit, 30 in x 20 ft, 9-Hole Rung

General Specifications

Mounting 1 – 4.5 in Round or Angle Legs (Standard J-Bolt Kit Included)

Cable Runs, qty 9

Rung Spacing 40 in [1,016 mm]

Dimensions

Height 2 in [50.8 mm]

Width 29.25 in [743 mm]

Length 240 in [6,096 mm]

Weight, Total 123 lb [55.8 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Download Drawing
