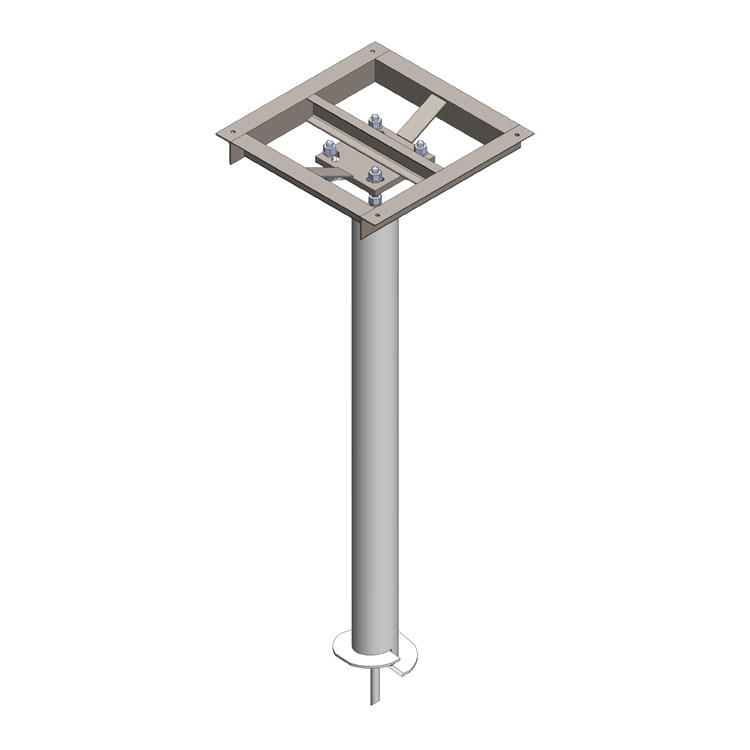

Cabinet Frame Platform

Product Classification

Part Number 1000-0010-0168

Product Type Cabinet frame platform kit with helical

General Specifications

Application helical platform for electrical cabinets

Dimensions

Width 32 in [812.8 mm]

Length 32 in [812.8 mm]

Height above grade 11.75 in [298.5 mm]

Height 98.5 in [2,501.9 mm]

Weight, Total 297 lb [134.7 kg]

Material Specifications

Material Type Hot dip galvanized steel
