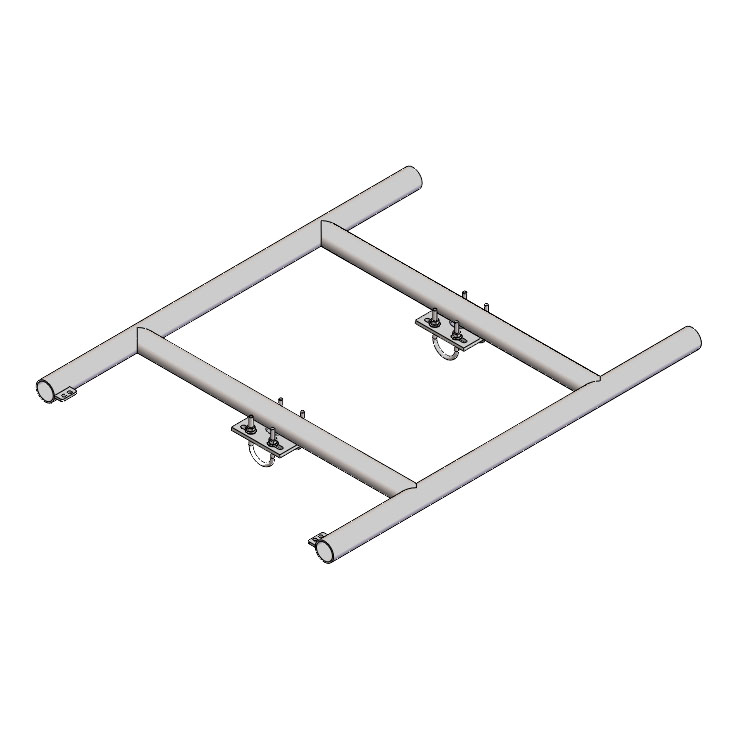

Antenna Mount H-Frame

Product Classification

Part Number 400-904-0103

Product Type Antenna Mount H-Frame

General Specifications

Application Antenna mount

Mounting 2 in [50.8 mm] OD

Pipe, Quantity 2

Tower Taper Non-tapered | Tapered

Dimensions

Height 48 in [1219.2 mm]

Vertical Pipe Dia. 2 in [50.8 mm]

Pipe Length 48 in [1219.2 mm]

Face Width 38.375 in [974.73 mm]

Stand-off Distance 1.5 in [38.1 mm]

Weight, Total 59.78 lb [27.12 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Download Drawing
