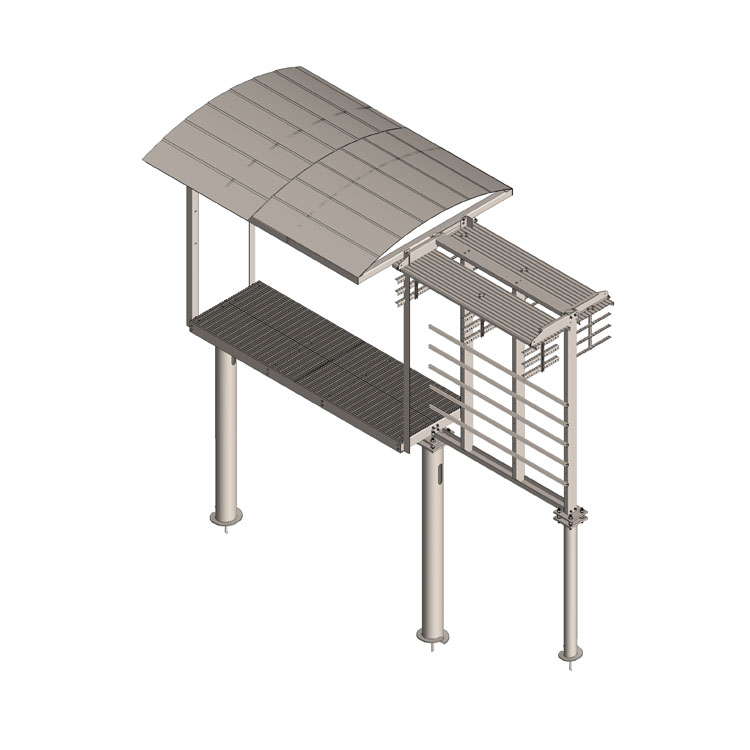

9′ X 12′-9″ Cabinet Platform with Integrated Solar Canopy, H-Frame and Ice Bridge

Product Classification

Part Number 1000-0010-0495

Product Type 9′ X 12′-9″ Cabinet Platform with Integrated Solar Canopy, H-Frame and Ice Bridge

General Specifications

Mounting Triple Helical

General Specifications

Application This platform provides a stable base for telecommunications and railroad equipment, featuring an integrated solar canopy for power generation, an H-frame for versatile equipment mounting, and an ice bridge to protect against weather and debris.

Dimensions

Height 136.25 in [3,460.75 mm]

Height 100.8125 in [2,560.6 mm]

Width 247.25 in [6,280.2 mm]

Length 108 in [2,743.2 mm]

Weight, Total 4,445 lb [2,016.22 kg]

Material Specifications

Material Type Stainless Steel

Download Drawing
