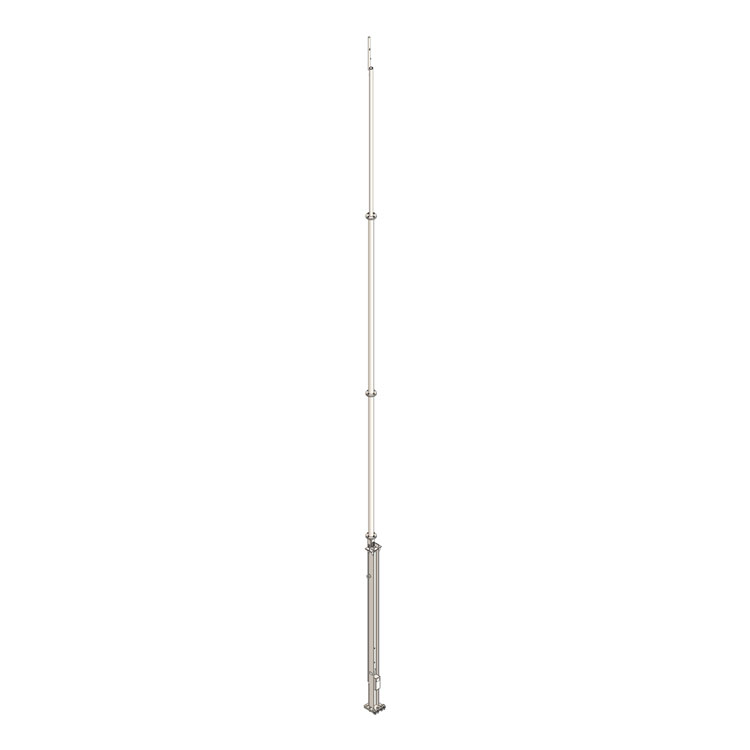

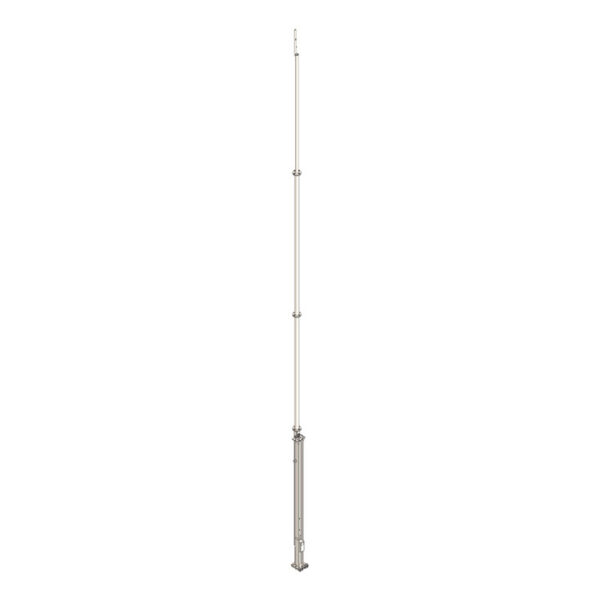

80 ft Antenna Tilt-Up Tower (110 MPH EIA/TIA REV G)

Product Classification

Part Number 400-004-5202

Product Type 80 ft Antenna Tilt-Up Tower (110 MPH EIA/TIA REV G)

General Specifications

Application Tower features an 80′ height with a tilt-up design, allowing for easy erection, installation, and maintenance of antennas by enabling the tower to be tilted up from the ground.

Dimensions

Height. 949 in [24,104.6 mm]

Width 17 in [431.8 mm]

Length 19.4 in [492.76 mm]

Weight, Total 3,331 lb [1,511 kg]

Material Specifications

Material Type / Grade hot dipped galvanized steel / A36

Mechanical Specifications

Wind Rating 110 MPH
