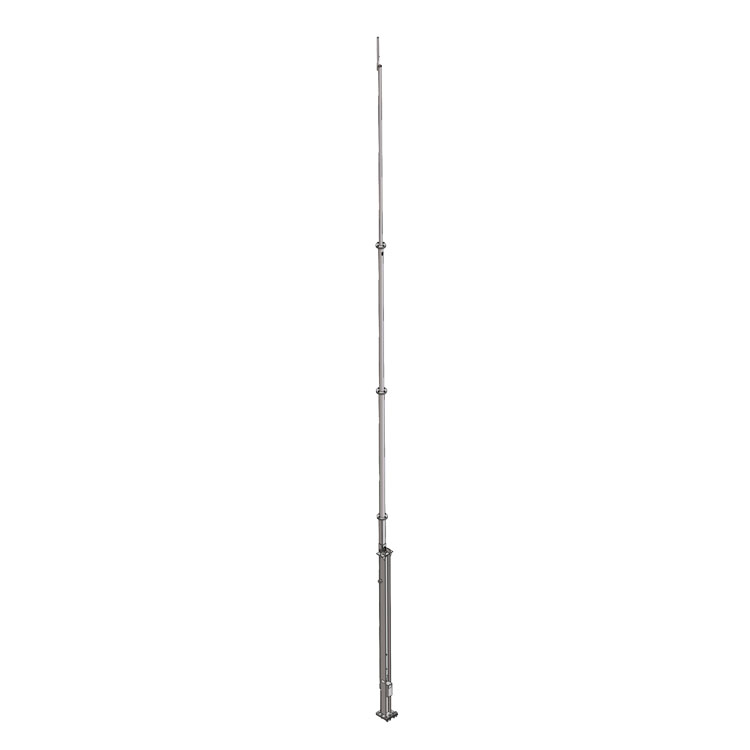

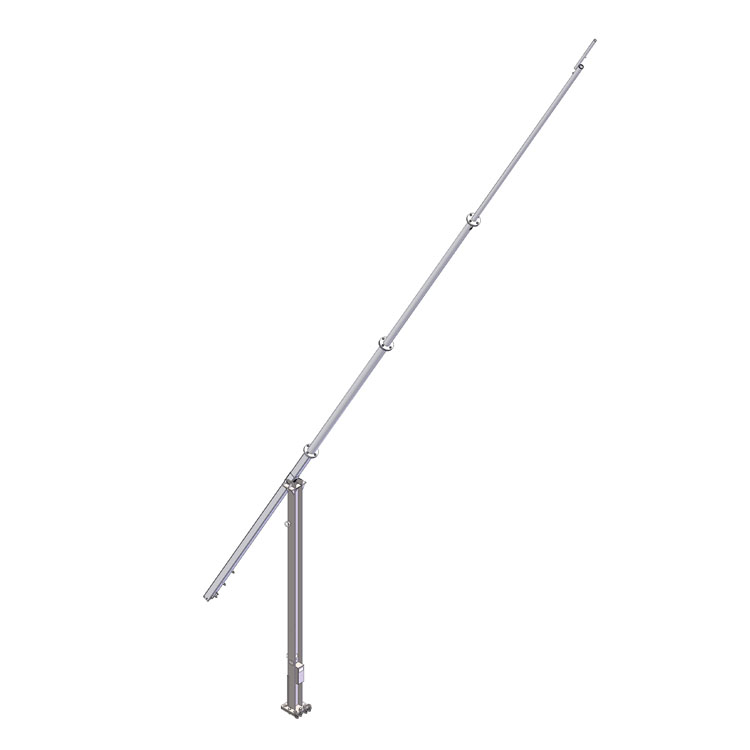

80 ft Antenna Tilt-Up Tower (90 MPH EIA/TIA REV G)

Product Classification

Part Number 400-004-5201

Product Type 80 ft Antenna Tilt-Up Tower

General Specifications

Application Antenna, GPS or accessory tower for Railroad and Telecom. Base configured for helical pier, direct burial, or pre-cast foundations.

Dimensions

Height 944 in [23,977.6 mm]

Mount Pipe Diameter 2.38 in [60.3 mm]

Mount Pipe Length 46 in [1,168.4 mm]

Weight, Total 2,715.71 lb [1,231.8 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Additional sizes available 20’ – 80’

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222
