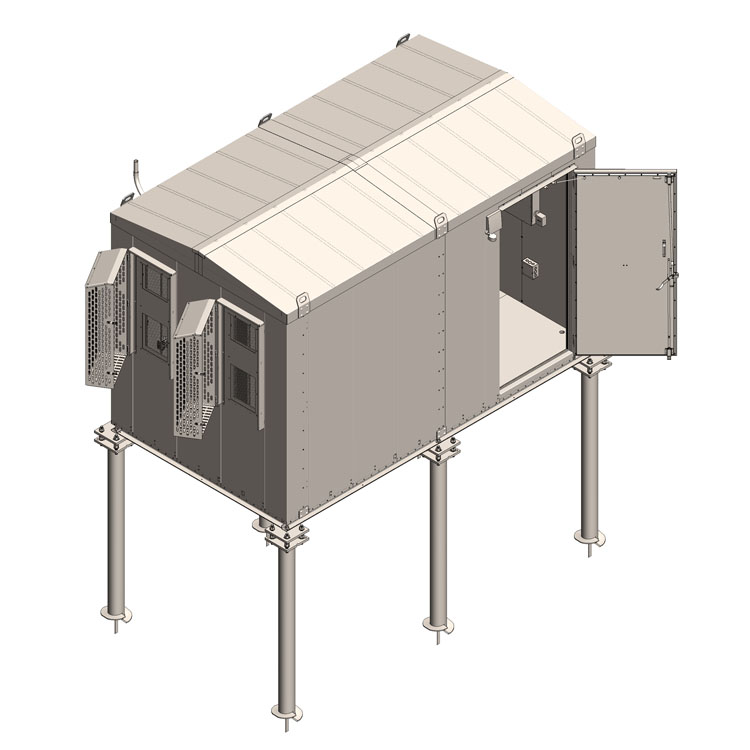

8′ X 14″ Railroad Microwave Communications Building (MCB)

Product Classification

Product Type 8×14 MCB

Part Number 1018-0010-0022

Dimensions

Exterior LxWxH 8’ x 15’2” x 9’1”

Weight 4,000 lbs

Interior LxWxH 89.5” x 161.5” x 92.5”

Door WxH 39.5” x 86.75”

 Material Specifications

Base Structure Steel

Walls & Roof Aluminum

 Load Specifications

Wind Rating 150 MPH per ASCE 7-16

Roof Rating 140 psf

Floor (Walking) 200 psf

Battery Rack Max 1,200 lbs (per rack)

Additional Features

Helical, Direct Burial, Elevated Platform Mounting

Lift Lugs

Wall & Ceiling Cable Ladders

Cable Portal Entry Locations
