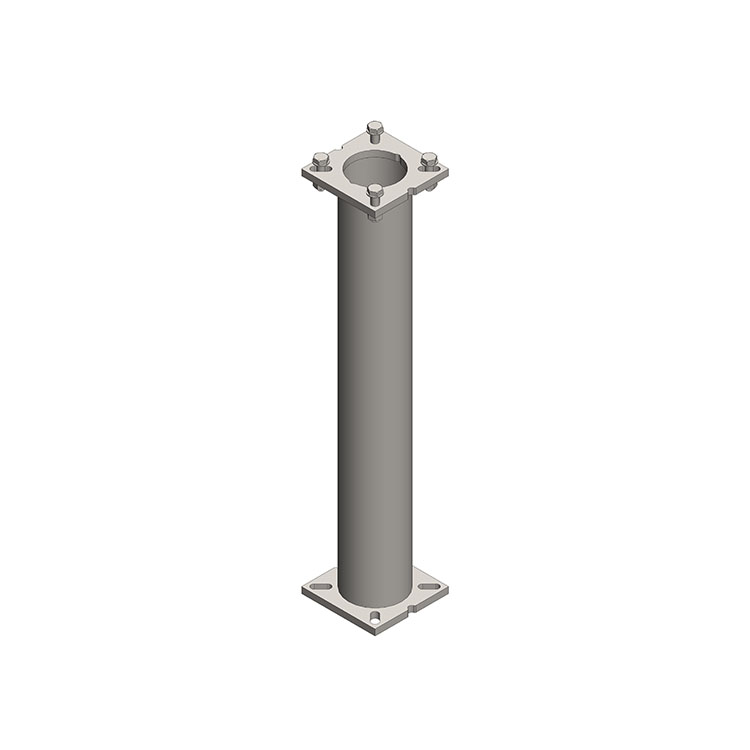

8″ dia. Pier Extensions (Quad Mount)

Product Classification

Part Number 1007-T008-0000

Product Type 8” Pier Extension/ Foundation

General Specifications

Application Elevated Platforms, Landings

Diameter 8.625 in [219.075 mm]

Dimensions

Width 12 in [304.8 mm]

Length 6 in – 300 in [152.4 mm – 7,620 mm]

Diameter 8.625 in [219.075 mm]

Weight, Total Varies by length

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Download Drawing
