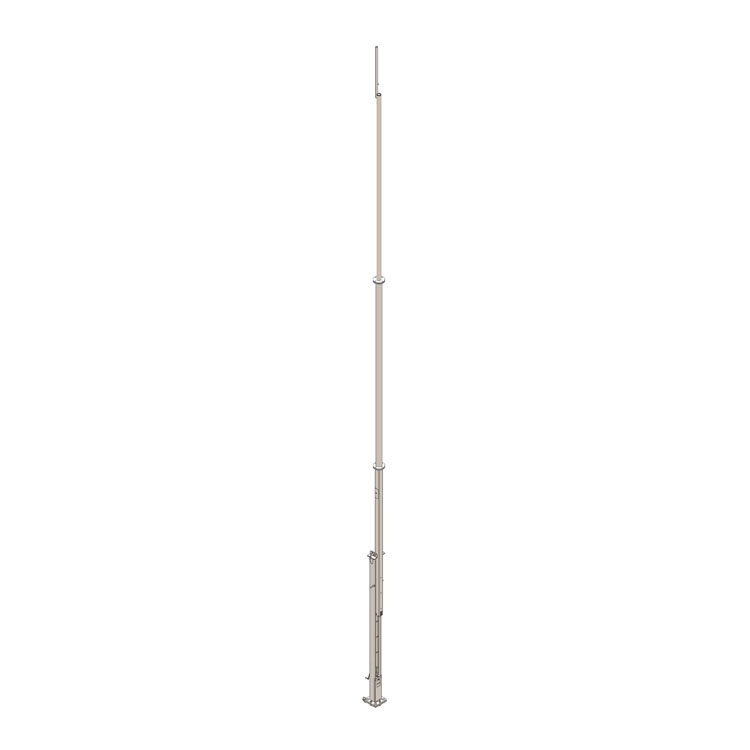

65 ft Antenna Tilt-Up Tower (95 MPH EIA/TIA REV G)

Product Classification

Part Number 1002-0030-0039

Product Type 65 ft Antenna Tilt-Up Tower

General Specifications

Application Tower features a 65′ height with a tilt-up design, allowing for easy erection, installation, and maintenance of antennas by enabling the tower to be tilted from the ground.

Dimensions

Height 780 in [5,207 mm]

Width 17 in [400.05 mm]

Length 17 in [400.05 mm]

Weight, Total 2,281.5 lb [211.29 kg]

Material Specifications

Material Type / Grade hot dipped galvanized steel / A36

Mechanical Specifications

Wind Rating 95 MPH
