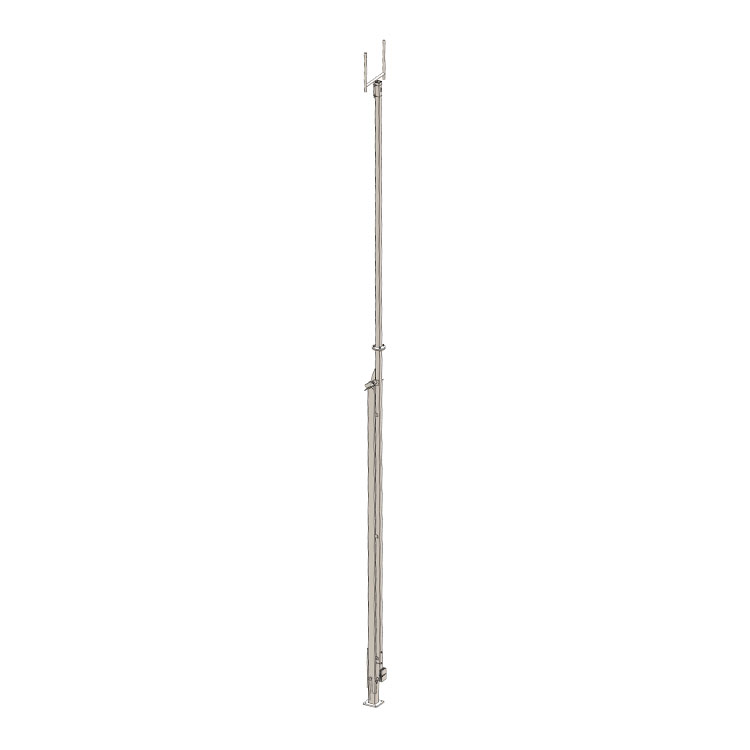

60 ft Equilibrium Antenna Tilt-Up Tower (100 MPH EIA/TIA REV G)

Product Classification

Part Number 1002-0030-0007

Product Type 60 ft Equilibrium Antenna Tilt-Up Tower (100 MPH EIA/TIA REV G)

General Specifications

Application Tower features a 60′ height with a tilt-up design, allowing for easy erection, installation, and maintenance of antennas by enabling the tower to be tilted up from the ground.

Dimensions

Height 713 in [18,110 mm]

Width 38 in [965 mm]

Length 17 in [431.8 mm]

Weight, Total 2,138.6 lb [970 kg]

Material Specifications

Material Type / Grade hot dipped galvanized steel / A36

Mechanical Specifications

Wind Rating 100 MPH
