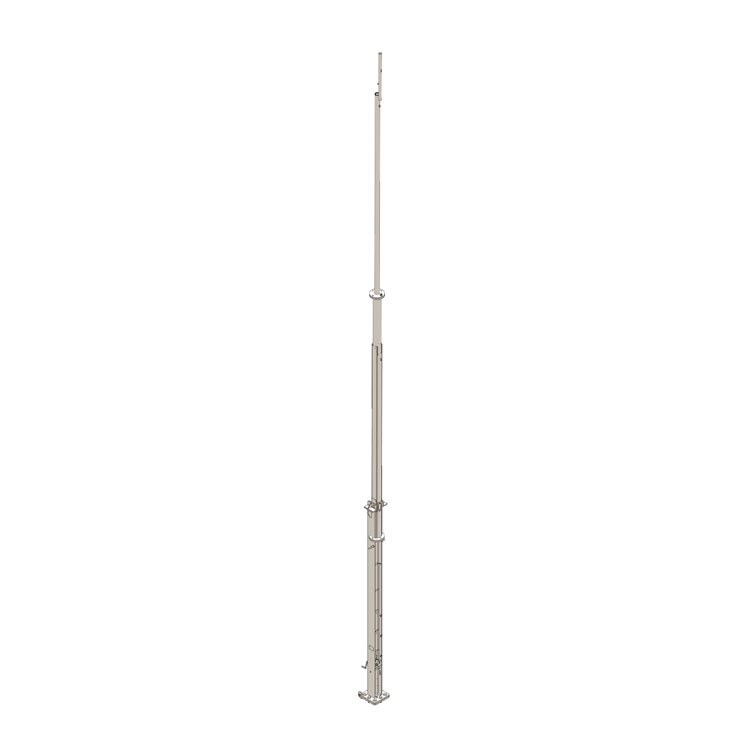

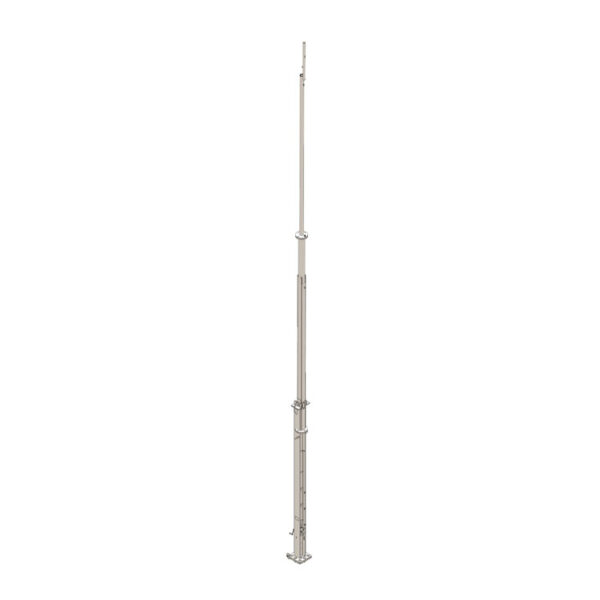

60 ft Antenna Tilt-Up Tower (110 MPH EIA/TIA REV G)

Product Classification

Part Number 400-004-5002

Product Type 60 ft Antenna Tilt-Up Tower (110 MPH EIA/TIA REV G)

General Specifications

Application Tower features a 60′ height with a tilt-up design, allowing for easy erection, installation, and maintenance of antennas by enabling the tower to be tilted up from the ground.

Dimensions

Height 642.25 in [6426.2 mm]

Width 15.75 in [400.05 mm]

Length 17.8 in [452.12 mm]

Weight, Total 1,919.6 lb [870.7 kg]

Material Specifications

Material Type / Grade hot dipped galvanized steel / A36

Mechanical Specifications

Wind Rating 110 MPH
