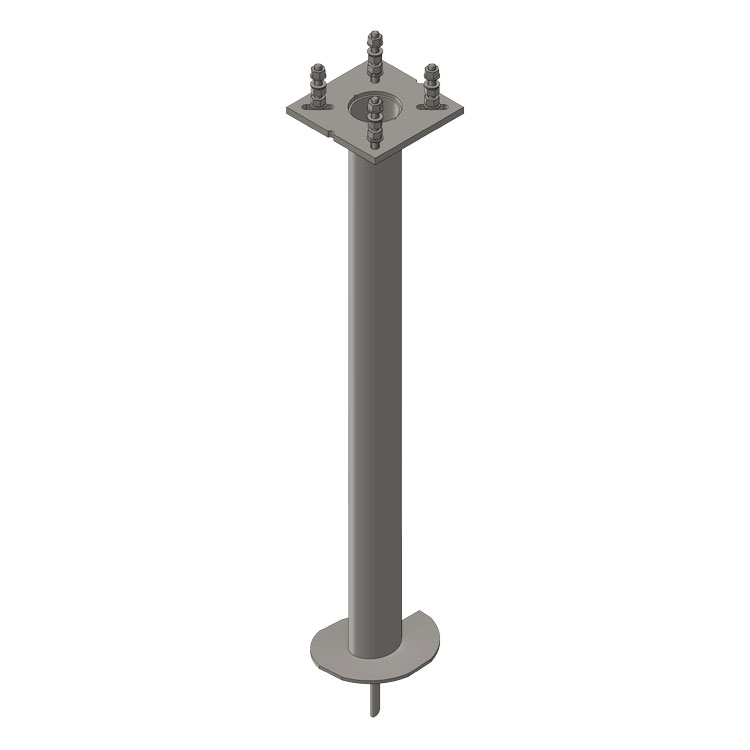

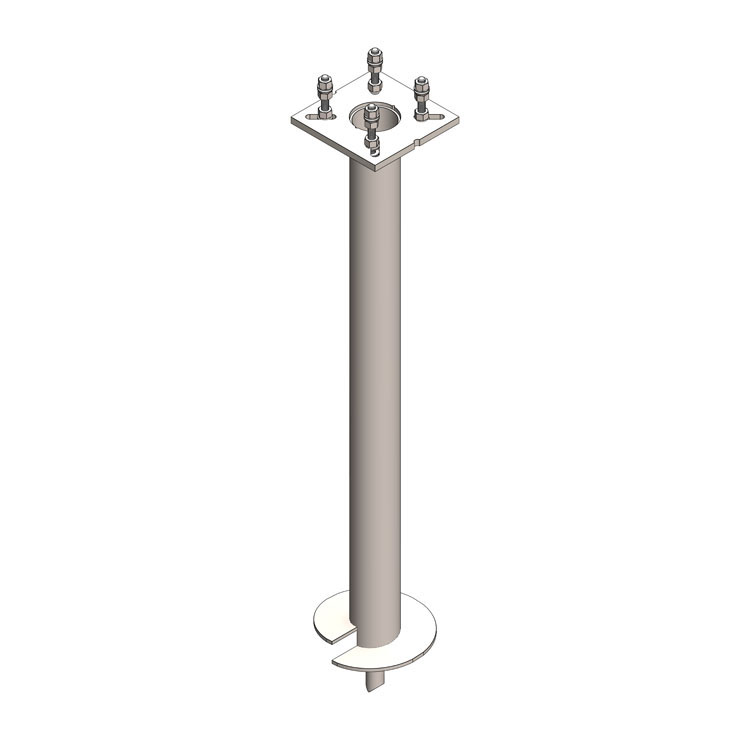

6” x 7 ft Helical Pier Foundation with 15” Top Plate

Product Classification

Part Number 1008-0050-0035

Product Type 6” x 7 ft Helical Pier Foundation with 15” Top Plate

General Specifications

Application Elevated Platforms, Landings, Towers

Dimensions

Width 15.5 in [393.7 mm]

Length 91.875 in [2,333.63 mm]

Diameter 6.625 in [168.28 mm]

Cableway none

Weight, Total 229.24 lb [103.98 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222
