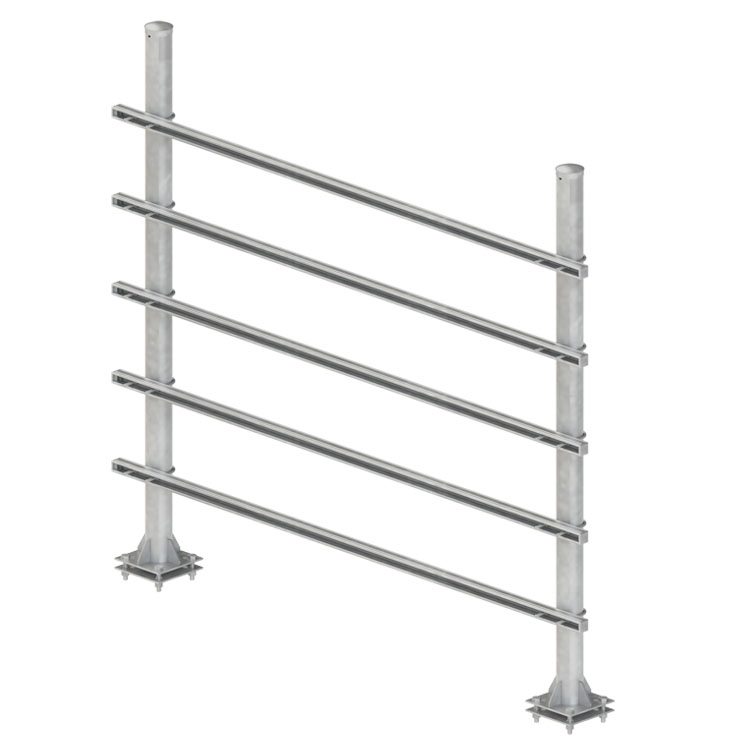

5 Level H-Frame (84″ x 72″)

Product Classification

Part Number 1010-0010-0187

Product Type 5 Level H-Frame

General Specifications

Application Equipment mounting frame

Dimensions

Width 84.375 in [2143.13 mm]

Height 72.875 in [1851.03 mm]

Depth 8 in [203.2 mm]

Weight 166.14 lb [75.36 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

No. of Levels 5

No. of Posts 2

Download Drawing
