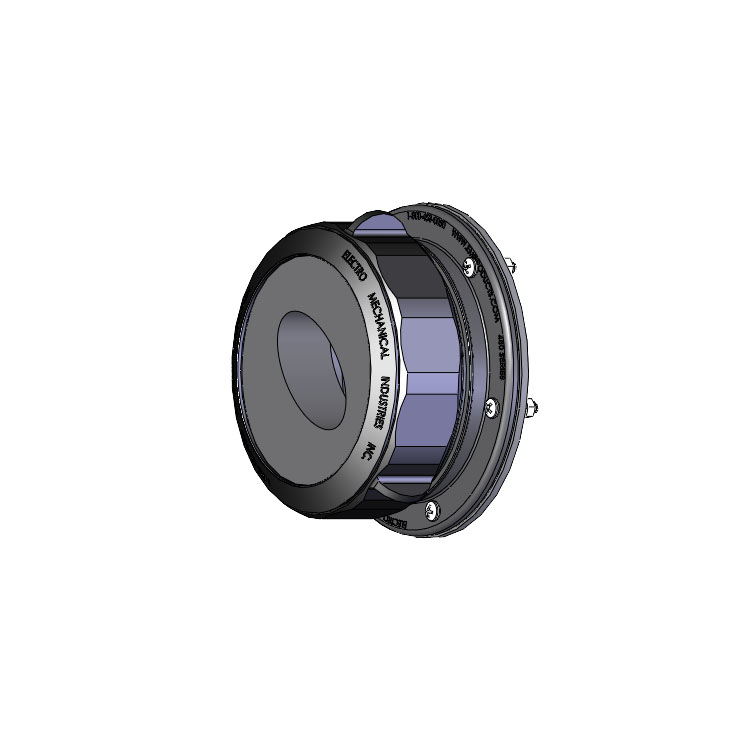

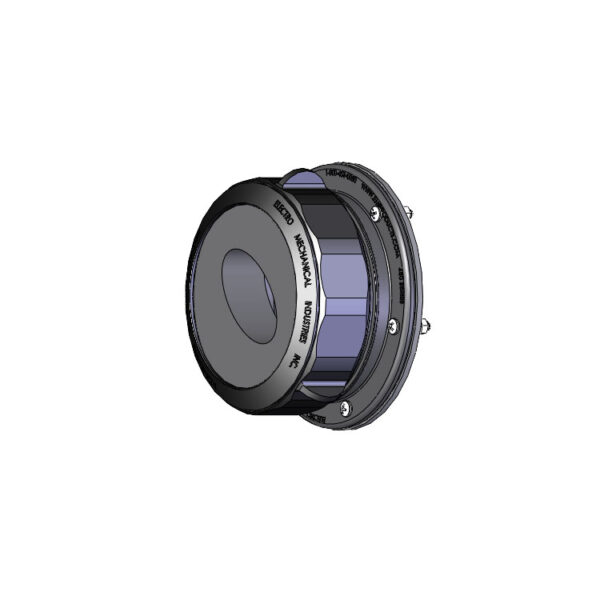

450 Series Portal Entry 2.25 X 1.3125″ Elliptical Hole Dia. Grommet

Product Classification

Part Number 1017-0120-0003

Product Type Portal Entry

General Specifications

Application Passthrough for electrical cables

Dimensions

Body Dia 5.187 in [131.75mm]

Depth 2.4375 in [61.91 mm]

Weight 0.80 lb [0.36 kg]

Material Specifications

Material Type PVC Type 2

Mechanical Specifications

Grommet Hole Dia 2.25 X 1.3125 in [57.15 X 33.34 mm] Elliptical

No. Holes 1
