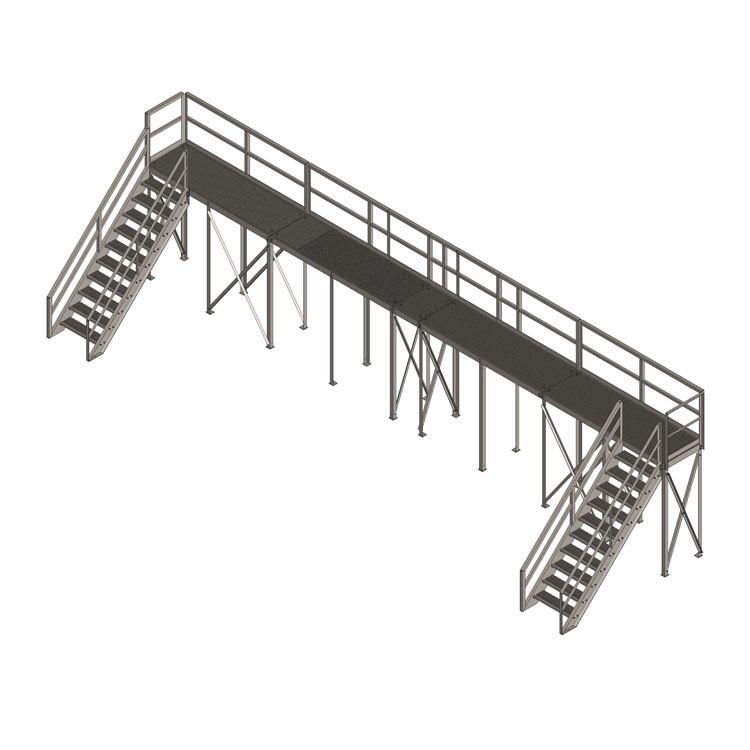

42′ Elevated Catwalk

Product Classification

Part Number 1006-0020-0021

Product Type 42’ Elevated Catwalk

General Specifications

Stair Width 36 in [914.4 mm]

General Specifications

Application This elevated catwalk, featuring two staircases from ground level to platform height, provides safe and easy access for maintenance and inspection of telecommunications and railroad equipment installed at elevated positions.

Dimensions

Height 138.375 in [3,514.7 mm]

Width 510 in [12,954 mm]

Length 137.75 in [3,498.9 mm]

Weight, Total 5,083.41 lb [2,305.8 kg]

Material Specifications

Material Type Stainless Steel

Download Drawing
