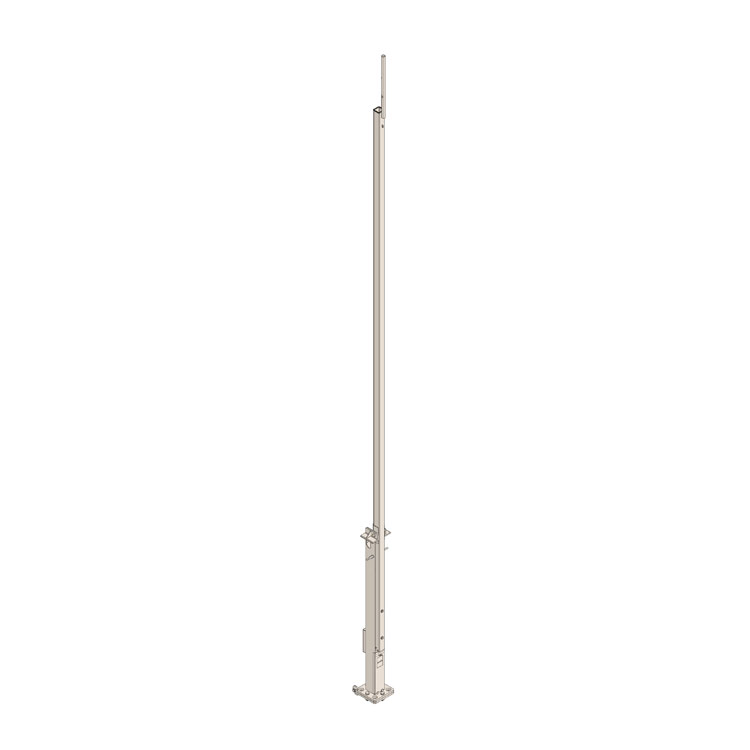

40 ft Antenna Tilt-Up Tower (130 MPH EIA/TIA REV G)

Product Classification

Part Number 400-004-3044

Product Type 40 ft Antenna Tilt-Up Tower (130 MPH EIA/TIA REV G)

General Specifications

Application Tower features a 40′ height with a tilt-up design, allowing for easy erection, installation, and maintenance of antennas by enabling the tower to be tilted up from the ground.

Dimensions

Height 480.00 in [12,192 mm]

Width 17 in [431.8 mm]

Length 19.37 in [492 mm]

Weight, Total 1,191.26 lb [540.35 kg]

Material Specifications

Material Type / Grade hot dipped galvanized steel / A36

Mechanical Specifications

Wind Rating 130 MPH

Download Drawing
