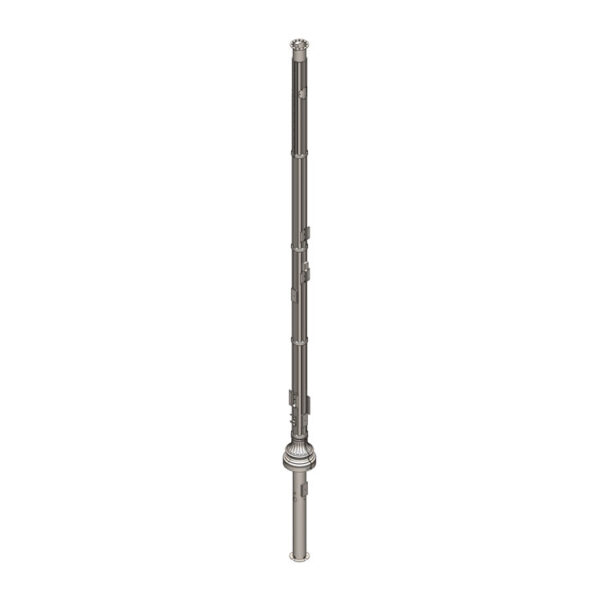

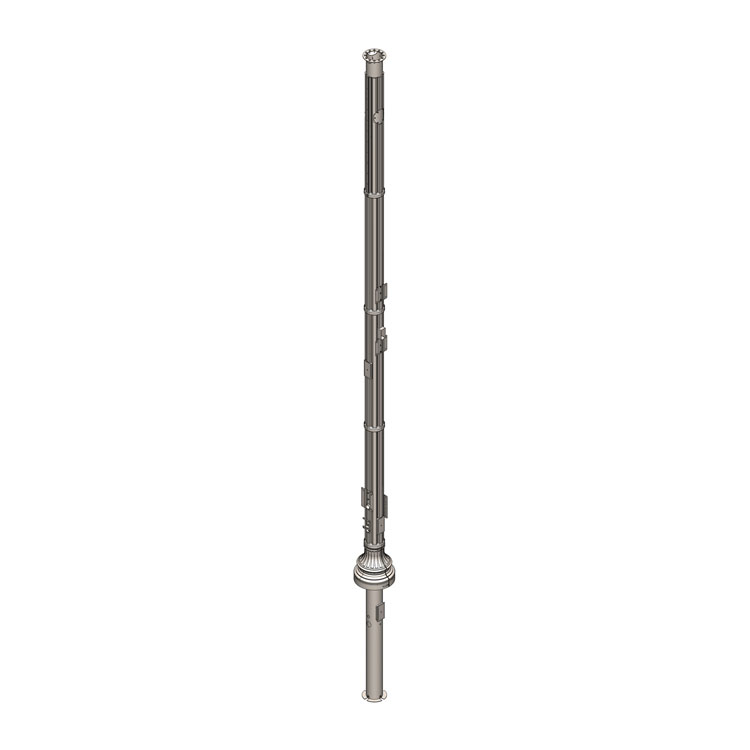

34′ Fluted Monopole Tower, Direct Burial

Product Classification

Part Number 1002-0020-0068

Product Type 34 ft Fluted Monopole

General Specifications

Application 5G/Small Cell Single Carrier-Integrated

Dimensions

Height From Grade 412 in [10464.8 mm]

Burial Depth 92 in [2336.8 mm]

Pole Diameter 13.5 in [342.9  mm]

Base Diameter 26.5 in [673.1  mm]

Weight, Total 1,375.88 lb [624.09 kg]

 Material Specifications

Material Type Hot dip galvanized or painted steel

Mechanical Specifications

Additional sizes available

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222
