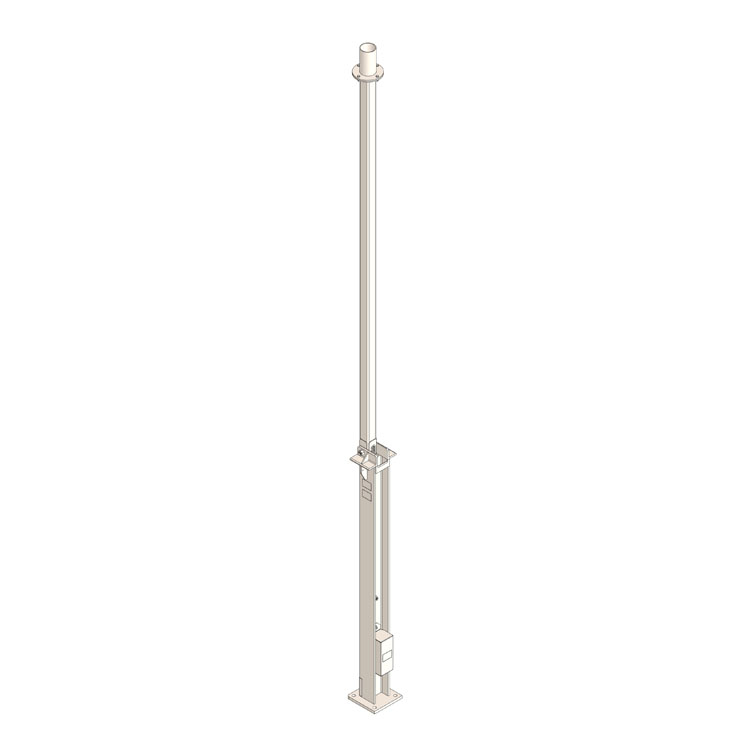

30 ft Tilt-Up Solar Tower, 6 Module

Product Classification

Part Number 1002-0030-0047

Product Type 30 ft Tilt-Up Solar Tower, 6 Module

General Specifications

Application Tower features a 30′ height with a tilt-up design, allowing for easy erection, installation, and maintenance of antennas by enabling the tower to be tilted from the ground.

Dimensions

Height 315 in [8,001 mm]

Width 15.5 in [393.7 mm]

Length 17.75 in [450.85 mm]

Weight, Total 1,302.2 lb [590.67 kg]

Material Specifications

Material Type / Grade hot dipped galvanized steel / A36

Mechanical Specifications

Wind Rating 90 MPH
