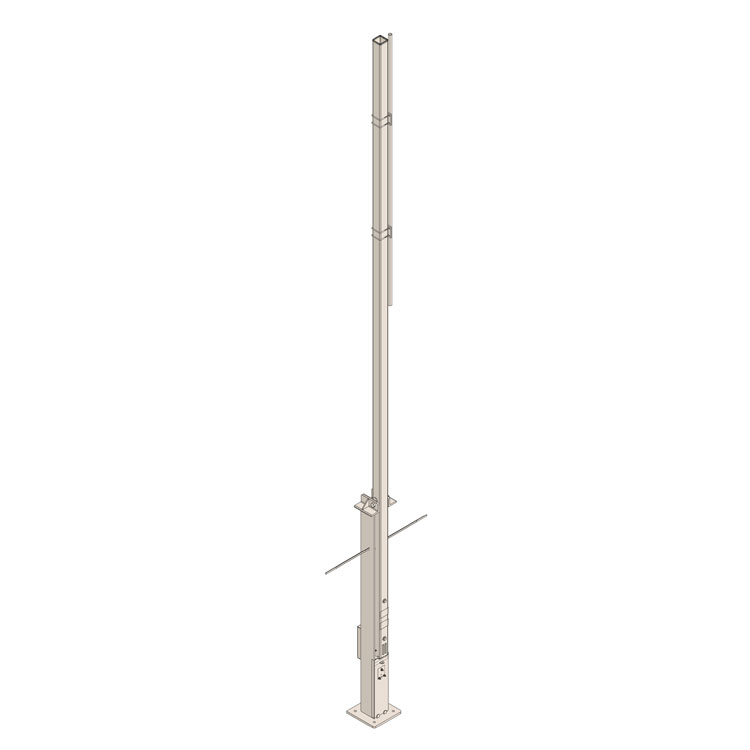

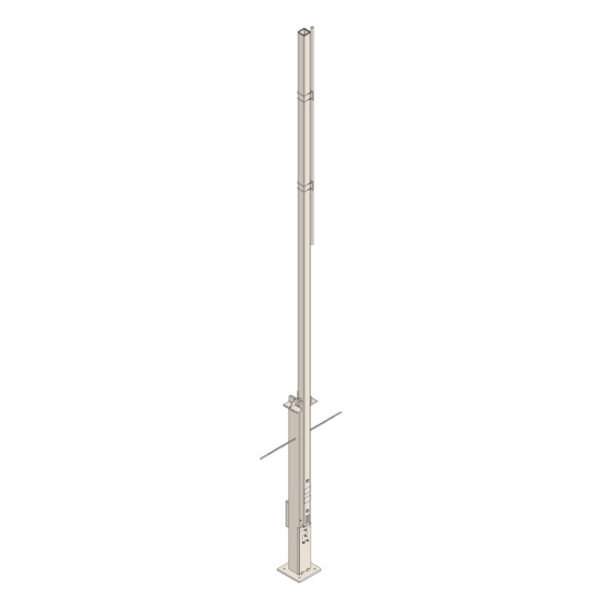

30 ft Antenna Tilt-Up Tower (115 MPH EIA/TIA REV G)

Product Classification

Part Number 1002-0030-0019

Product Type 30 ft Antenna Tilt-Up Tower (115 MPH EIA/TIA REV G)

General Specifications

Application Tower features a 30′ height with a tilt-up design, allowing for easy erection, installation, and maintenance of antennas by enabling the tower to be tilted up from the ground.

Dimensions

Height 360.00 in [9,144 mm]

Width 17 in [431.8 mm]

Length 17.8 in [452.1 mm]

Weight, Total 1,080.25 lb [489.87 kg]

Material Specifications

Material Type / Grade hot dipped galvanized steel / A36

Mechanical Specifications

Wind Rating 115 MPH
