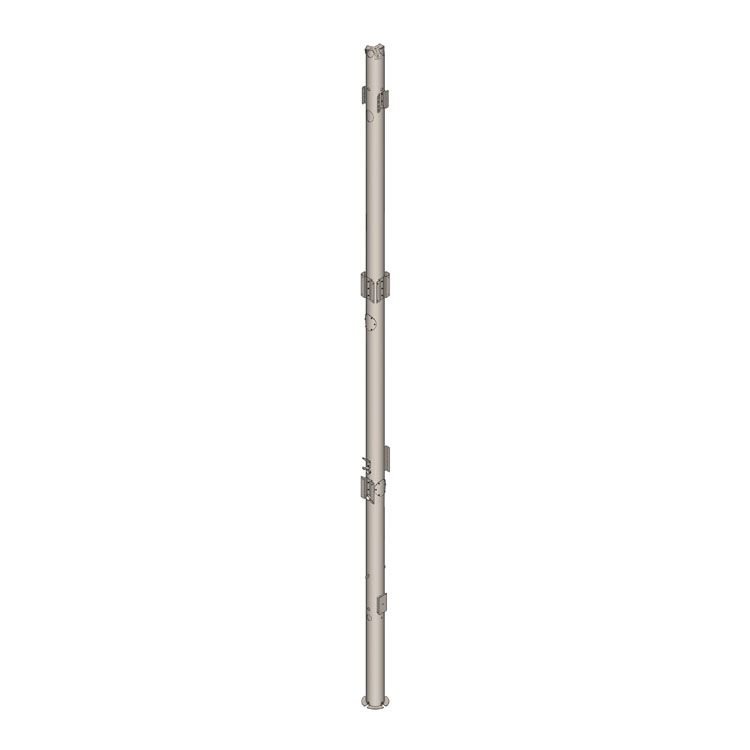

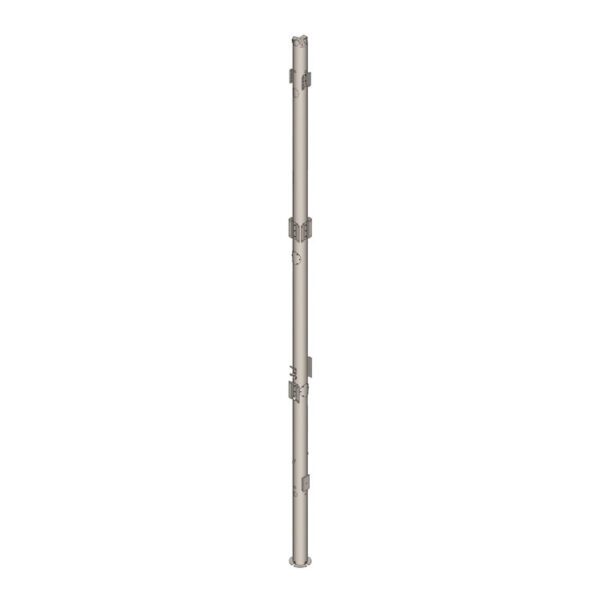

30′-6″ Straight Monopole Tower Direct Burial

Product Classification

Part Number 1002-0020-0031

Product Type 30’-6” ft Monopole – Direct Burial

General Specifications

Application 5G/Small Cell Single Carrier External Mount Direct Burial

Dimensions

Height Overall 462 in [11,734 mm]

Height Above Grade 366 in [9,296 mm]

Pole Diameter 10.75 in [273 mm]

Weight, Total 1,168 lb [530 kg]

Material Specifications

Material Type Hot dip galvanized or painted steel

Mechanical Specifications

Additional sizes available

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Download Drawing
