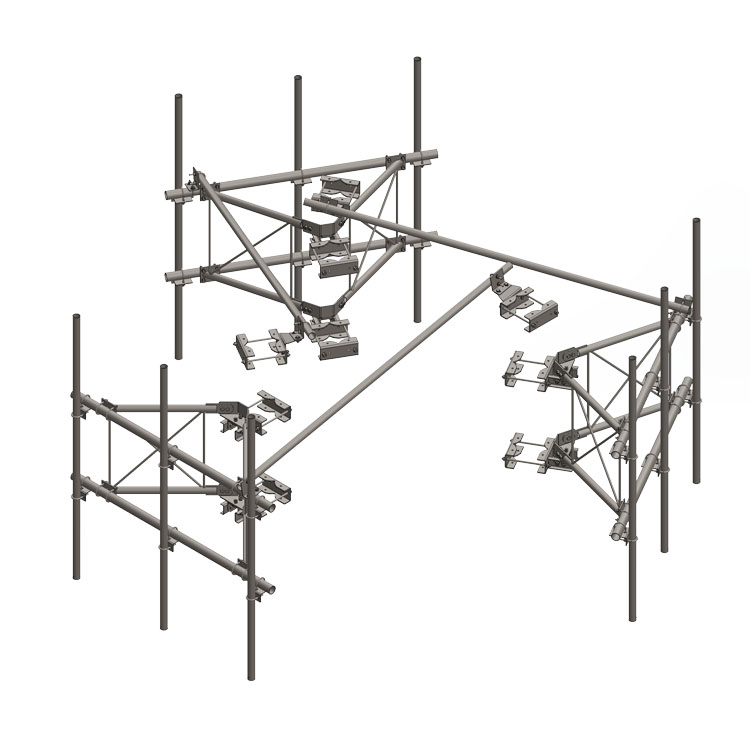

3 Sector, 3 Unit Tower Mount

Product Classification

Part Number 1012-0030-1331

Product Type 3 Sector 3 Mount Frame

General Specifications

Application Antenna/Radio mount

Mounting 8.625 – 2.875 in [219.08 – 73.03 mm] OD

Pipe, Quantity 9

Tower Taper Non-tapered | Tapered

Dimensions

Height 96 in [2438.4 mm]

Vertical Pipe Dia. 2 in [50.8 mm]

Pipe Length 96 in [2438.4 mm]

Face Width 84 in [2133.6 mm]

Mounting Dia., max. 8.625 in [219.08 mm]

Mounting Dia., min. 2.875 in [130.18 mm]

Stand-off Distance 37.25 in [946.15 mm]

Weight, Total 1403.92 lb [636.81 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Download Drawing
