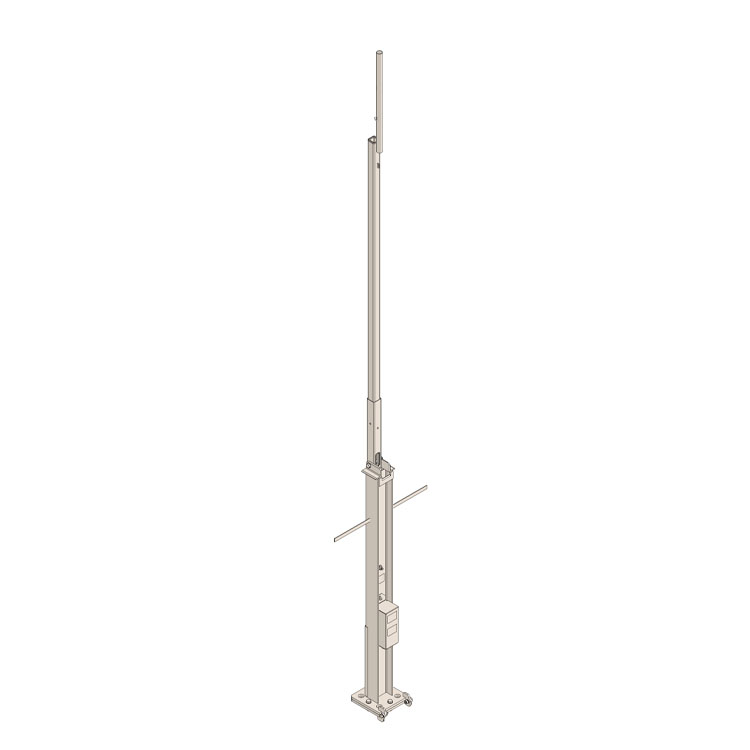

25 ft Antenna Tilt-Up Tower (90 MPH EIA/TIA REV G)

Product Classification

Part Number 1002-0030-0028

Product Type 25 ft Antenna Tilt-Up Tower (90 MPH EIA/TIA REV G)

General Specifications

Application Tower features a 25′ height with a tilt-up design, allowing for easy erection, installation, and maintenance of antennas by enabling the tower to be tilted up from the ground.

Dimensions

Height 300.00 in [7620 mm]

Width 15.75 in [400.05 mm]

Length 17.8 in [452.1 mm]

Weight, Total 657.2 lb [298.10 kg]

Material Specifications

Material Type / Grade hot dipped galvanized steel / A36

Mechanical Specifications

Wind Rating 90 MPH
