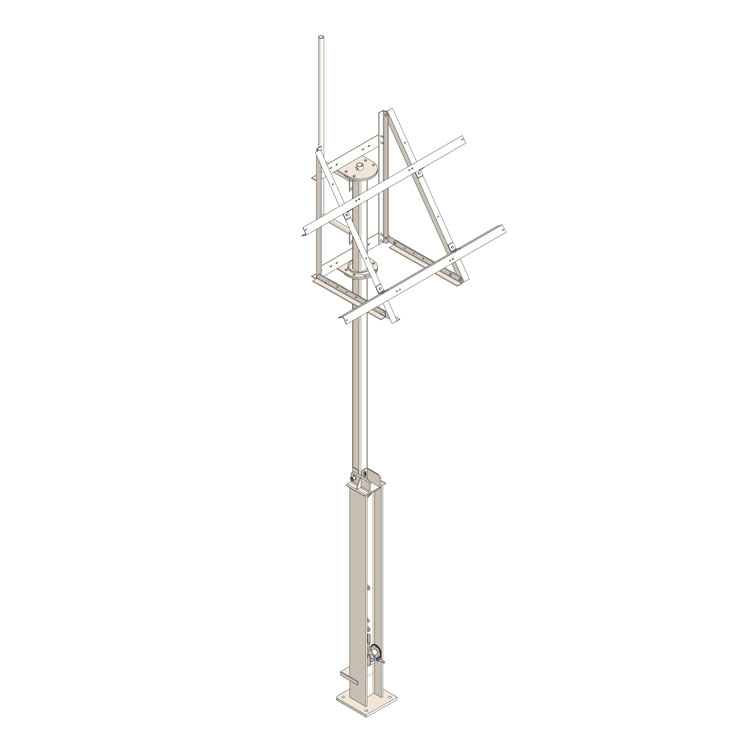

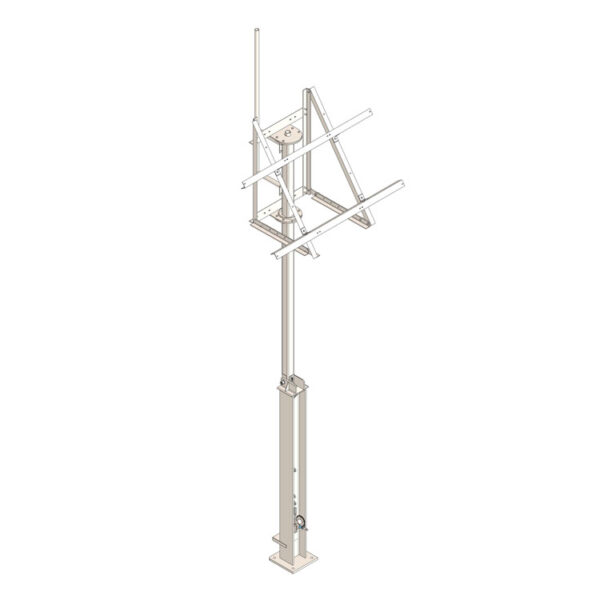

20 ft Tilt-Up Solar Tower, 3 Module

Product Classification

Part Number 400-004-1830

Product Type 20 ft Tilt-Up Solar Tower, 3 Module

General Specifications

Application Tower features a 20′ height with a tilt-up design, allowing for easy erection, installation, and maintenance of antennas by enabling the tower to be tilted from the ground.

Dimensions

Height 243.57 in [6,186.68 mm]

Width 79.75 in [2,025.65 mm]

Length 43.44 in [1,103.38 mm]

Weight, Total 944.2 lb [428.28 kg]

Material Specifications

Material Type / Grade hot dipped galvanized steel / A36

Mechanical Specifications

Wind Rating 95 MPH
