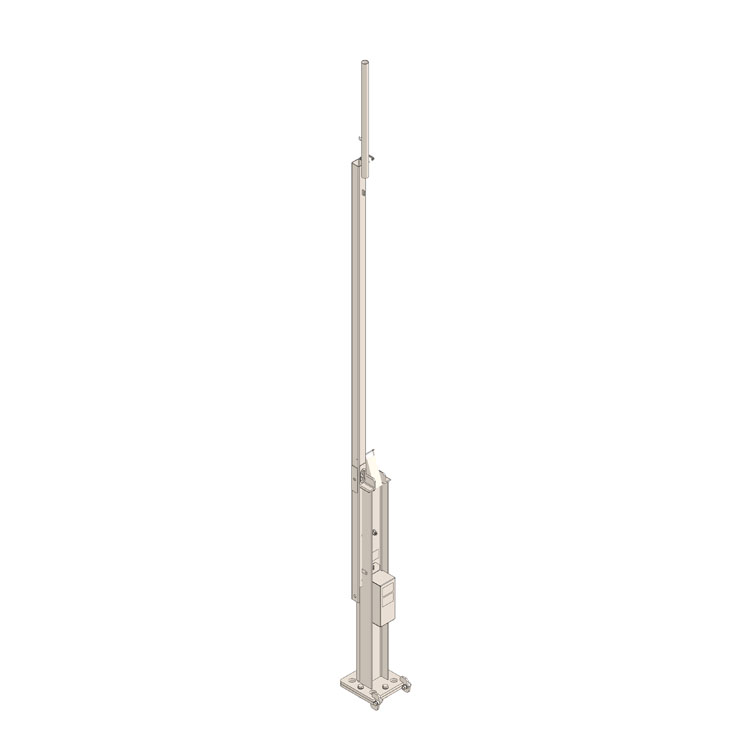

20 ft Antenna Tilt-Up Tower (90 MPH EIA/TIA REV G)

Product Classification

Part Number 400-004-1010

Product Type 20 ft Antenna Tilt-Up Tower (90 MPH EIA/TIA REV G)

General Specifications

Application Tower features a 20′ height with a tilt-up design, allowing for easy erection, installation, and maintenance of antennas by enabling the tower to be tilted up from the ground.

Dimensions

Height 253 in [6426.2 mm]

Width 15.75 in [400.05 mm]

Length 17.8 in [452.12 mm]

Weight, Total 498 lb [225.9 kg]

Material Specifications

Material Type / Grade hot dipped galvanized steel / A36

Mechanical Specifications

Wind Rating 90 MPH
