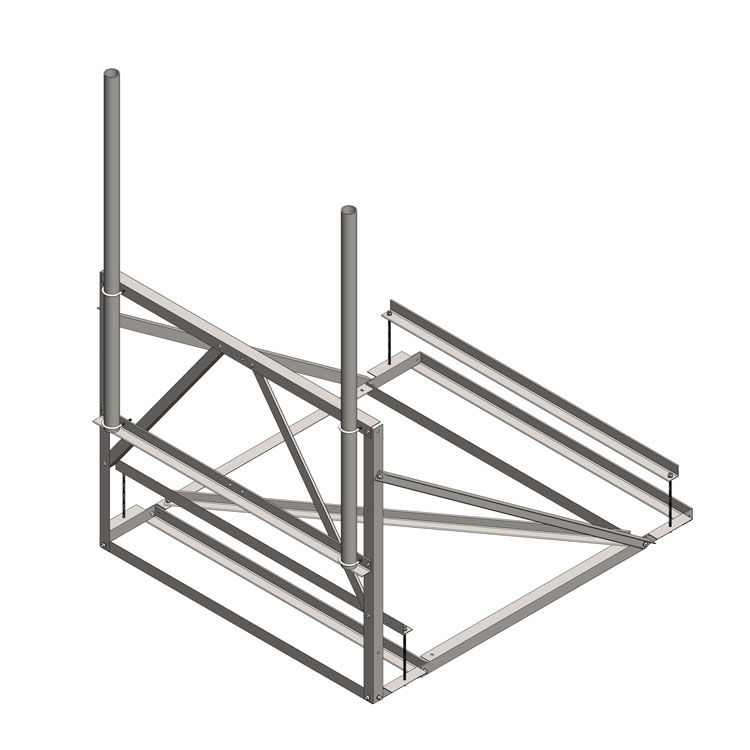

2 Unit Rooftop Sled Mount

Product Classification

Part Number 1000-0010-0321

Product Type Rooftop Sled Mount

General Specifications

Mounting Non-penetrating

Pipe, Quantity 2

 Dimensions

Height 131.94 in [3351.28 mm]

Vertical Pipe Dia. 3.5 in [90.17 mm]

Pipe Length 96 in [2438.4 mm]

Face Width 84 in [2133.6 mm]

Length 100 in [2540 mm]

Weight, Total 561.5 lb [254.69 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Note

Not Included Rubber mats (provided separately)

Download Drawing
