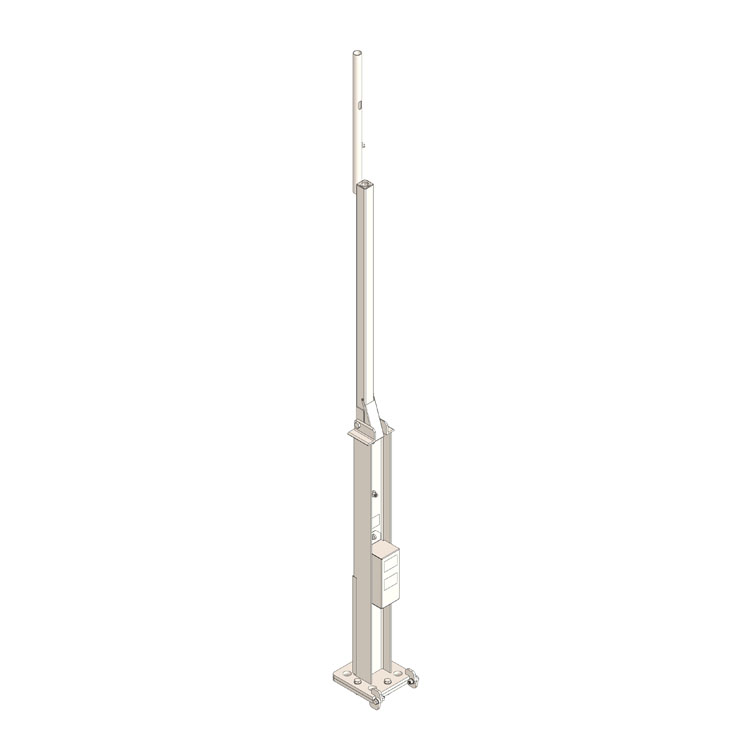

17 ft Antenna Tilt-Up Tower (90 MPH EIA/TIA REV G)

Product Classification

Part Number 400-004-1006

Product Type 17 ft Antenna Tilt-Up Tower

General Specifications

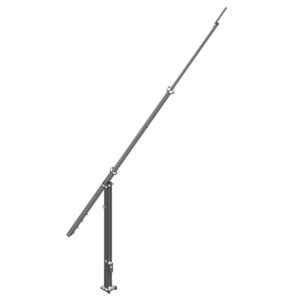

Application Tower features a 17′ height with a tilt-up design, allowing for easy erection, installation, and maintenance of antennas by enabling the tower to be tilted from the ground.

Dimensions

Height 205 in [5,207 mm]

Width 15.75 in [400.05 mm]

Length 15.75 in [400.05 mm]

Weight, Total 465.82 lb [211.29 kg]

Material Specifications

Material Type / Grade hot dipped galvanized steel / A36

Mechanical Specifications

Wind Rating 90 MPH
