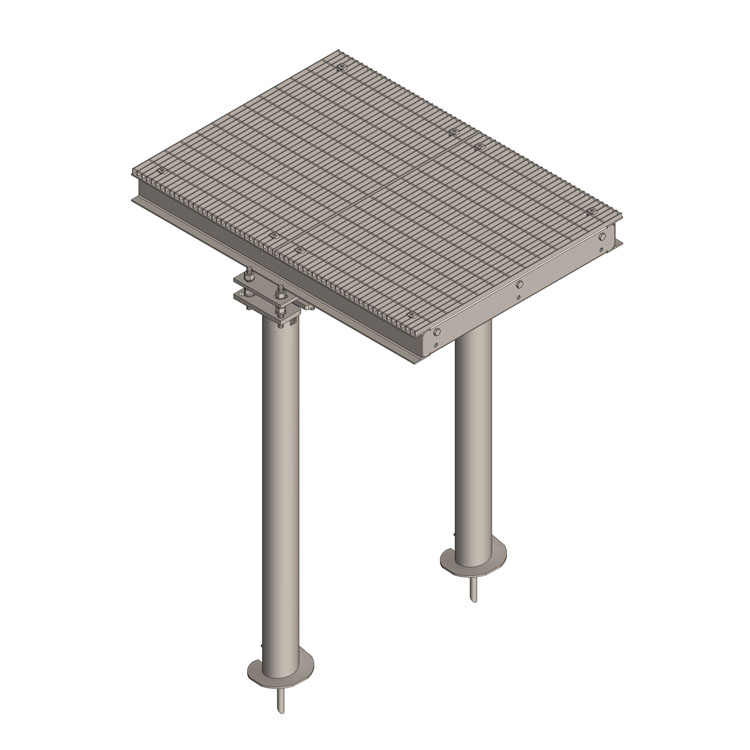

144” x 53” Helical Mount Generator Platform

Product Classification

Part Number 1000-0010-0109

Product Type 144” x 53” Helical Mount Generator Platform

General Specifications

Application The 144” x 53” Helical Mount Generator Platform is designed for secure installation using helical mounting technology. It provides a stable foundation for generators, accommodating various environmental conditions with reliable support.

Dimensions

Length 72 in [1,828.8 mm]

Width 61 in [1,549.4 mm]

Height 101 in [2,565.4 mm]

Height Above Grade 16.5 in [419.1 mm]

Weight 887 lb [402.3 kg]

Material Specifications

Material Type Hot dip galvanized steel
