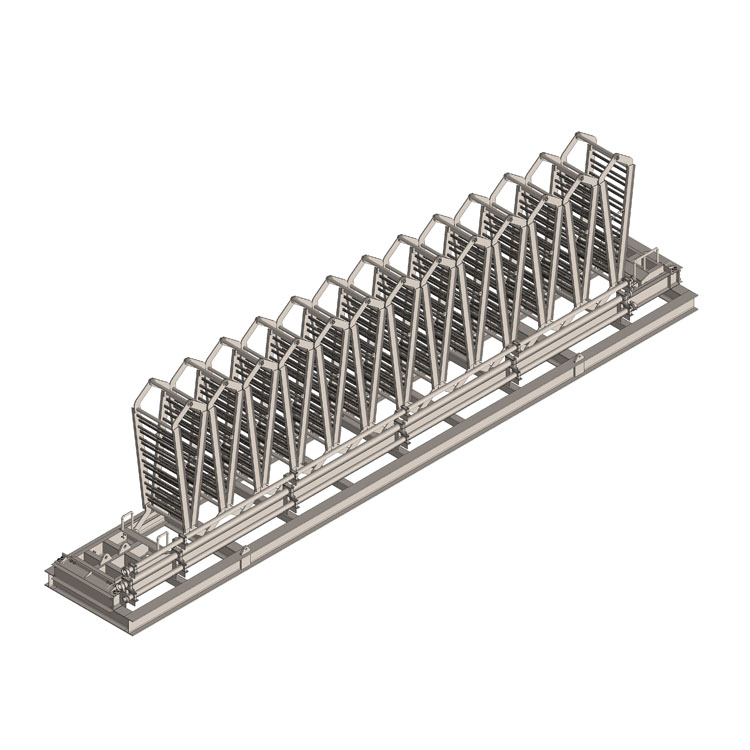

138′ Travel Accordion System

Product Classification

Part Number 1011-0000-0032

Product Type PARKER DRILLING ACCORDION CMS

General Specifications

Application This system facilitates the connection between an oil well drill rig and its accompanying generator or power/control house skid. Its unique ability to expand ensures continuous connection with the skidding/walking drilling rig, optimizing batch drilling operations.

Dimensions

Height 140.7 in [3,540.8 mm]

Width 84 in [3,098.8 mm]

Length 611.5 in [15,532.1 mm]

Length Fully Extended 4,531 in [69,098.2 mm]

Weight, Total 83,490.2 lb [29,492 kg]

Material Specifications

Material Type Galvanized Mild Steel

Max Travel 138 ft 9 in

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050.
