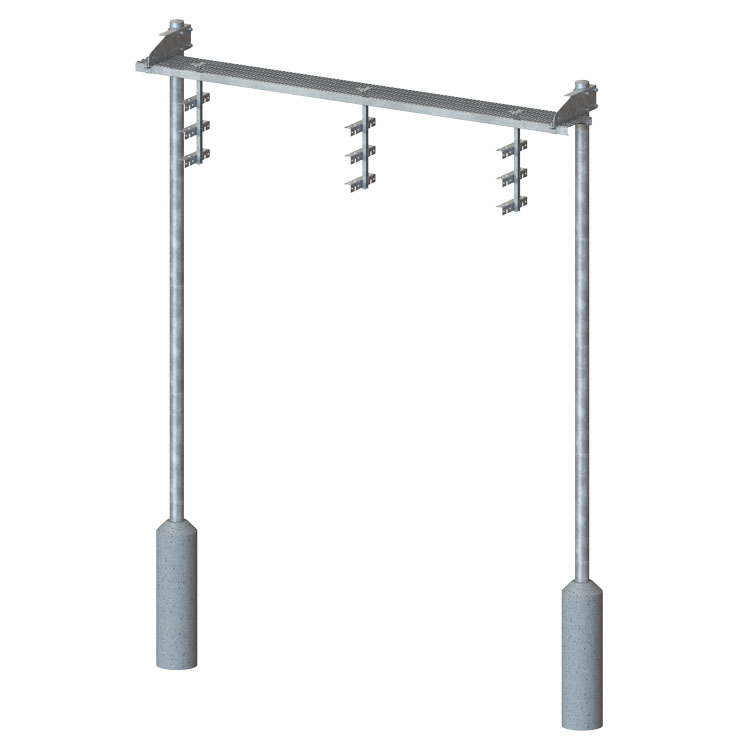

12” Ice Bridge Kit With Trapeze, Direct Burial 13’-4” Posts

Product Classification

Part Number 1000-0010-0300

Product Type 12” Ice Bridge Kit With Trapeze, Direct Burial 13’-4” Posts

General Specifications

Application Direct Burial

Cable Runs, qty 12

Pipe, qty 2

Dimensions

Height 160 in [4,064 mm]

Width 12 in [305 mm]

Length 120 in [3048 mm]

Pipe Diameter 3.5in [88.9 mm]

Pipe Length 159.75 in [4,058 mm]

Weight, Total 320 lb [145 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Download Drawing
