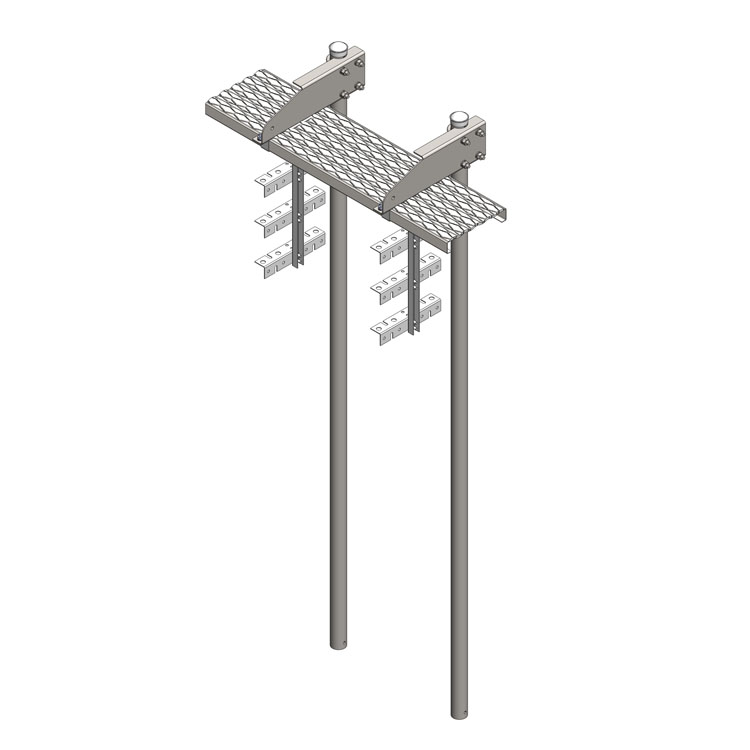

12” Ice Bridge Kit With Trapeze, Direct Burial 103.44” Posts

Product Classification

Part Number 1000-0010-0477

Product Type 12” Ice Bridge Kit With Trapeze, Direct Burial 103.44” Posts

General Specifications

Application Direct Burial

Cable Runs, qty 12

Pipe, qty 2

Dimensions

Height 103.44 in [2,627.38 mm]

Width 12 in [305 mm]

Length 48 in [1,219.2 mm]

Pipe Diameter 3.5in [88.9 mm]

Pipe Length 103.44 in [2,627.38 mm]

Weight, Total 159.02 lb [72.13 kg]

Material Specifications

Material Type Hot dip galvanized steel

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com
or call 800-453-0050.

Wind Rating Test Method TIA/EIA-222

Download Drawing
