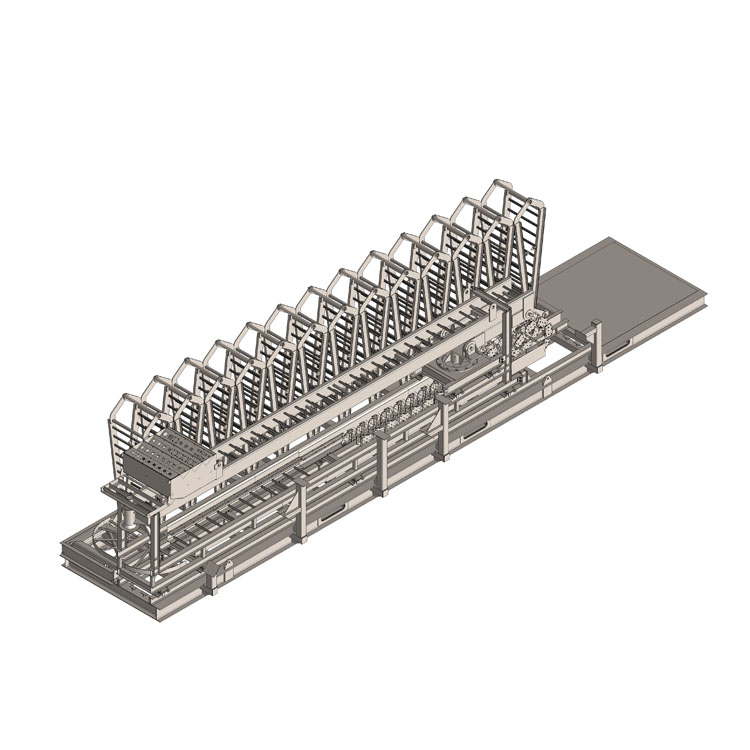

107″ Travel Accordion System

Product Classification

Part Number 1011-0000-0014

Product Type

ACCORDION SYSTEM

General Specifications

Application This system facilitates the connection between an oil well drill rig and its accompanying generator or power/control house skid. Its unique ability to expand and rotate ensures continuous connection with the skidding/walking drilling rig, optimizing batch drilling operations.

Dimensions

Height 139.4 in [3,540.8 mm]

Height Fully Extended 221.8 in [5,633.7 mm]

Width 122 in [3,098.8 mm]

Length 611.5 in [15,532.1 mm]

Length Fully Extended 2,720.4 in [69,098.2 mm]

Weight, Total 65,018.7 lb [29,492 kg]

Material Specifications

Material Type

Max Travel 107 ft 4in

Max Grasshopper Rotation + – 45 degrees from center / 25 ft from center

Mechanical Specifications

Wind Rating For details please contact sales@emiproducts.com or call 800-453-0050

Download Drawing
